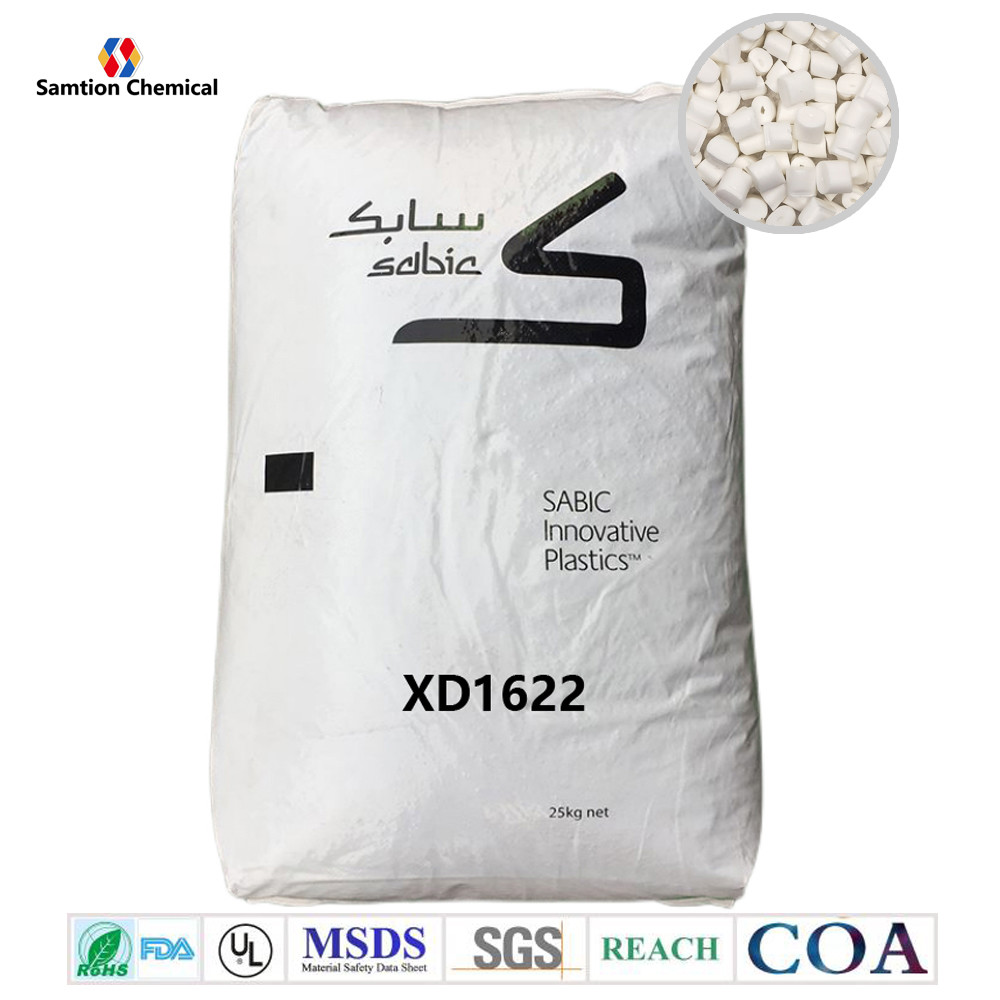

Weather Resistant S-Plastic PC PBT Plastic Injection Molding Resins Pellets Xenoy XD1622

100KG
MOQ
*USD
Price
Weather Resistant S-Plastic PC PBT Plastic Injection Molding Resins Pellets Xenoy XD1622
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 250°C/2.16 Kg: 12
UL Compliant, 94HB Flame Class Rating (3)(4): 1.5
Highlight:

plastic injection molding resins Xenoy XD1622

,

S-Plastic plastic injection molding resins

,

Xenoy weather resistant resin pellets

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Xenoy
Certification: COA/ICP Test/Rohs/MSDS
Model Number: XD1622
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Xenoy XD1622 resin is is a high flow PC+PBT blend with good low impact properties and good resistance to solvent and gasoline contact.XENOY XD1622 has been specially developed for clear coated exterior body panels.


Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Taber Abrasion, CS-17, 1 kg 30 mg/1000cy S-Plastics Method
Tensile Stress, yield, 50 mm/min 55 MPa ISO 527
Tensile Stress, break, 50 mm/min 40 MPa ISO 527
Tensile Strain, yield, 50 mm/min 4.5 % ISO 527
Tensile Strain, break, 50 mm/min >80 % ISO 527
Tensile Modulus, 1 mm/min 2200 MPa ISO 527
Flexural Stress, yield, 2 mm/min 75 MPa ISO 178
Flexural Modulus, 2 mm/min 2100 MPa ISO 178
Hardness, H358/30 95 MPa ISO 2039-1
IMPACT Value Unit Standard
Izod Impact, unnotched 80*10*4 +23°C NB kJ/m² ISO 180/1U
Izod Impact, unnotched 80*10*4 -30°C NB kJ/m² ISO 180/1U
Izod Impact, notched 80*10*4 +23°C 40 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 0°C 40 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -20°C 15 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 15 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 45 kJ/m² ISO 179/1eA
Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm 20 kJ/m² ISO 179/1eA
Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm NB kJ/m² ISO 179/1eU
Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm NB kJ/m² ISO 179/1eU
THERMAL Value Unit Standard
Thermal Conductivity 0.18 W/m-°C ISO 8302
CTE, 23°C to 80°C, flow 9.5E-05 1/°C ISO 11359-2
Ball Pressure Test, 75°C +/- 2°C PASSES - IEC 60695-10-2
Vicat Softening Temp, Rate B/50 115 °C ISO 306
Vicat Softening Temp, Rate B/120 120 °C ISO 306
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm 95 °C ISO 75/Be
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 75 °C ISO 75/Ae
PHYSICAL Value Unit Standard
Mold Shrinkage on Tensile Bar, flow (2) 0.7 - 1 % S-Plastics Method
Mold Shrinkage on Tensile Bar, xflow (2) 0.6 - 0.9 % S-Plastics Method
Density 1.22 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.5 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.15 % ISO 62
Melt Volume Rate, MVR at 250°C/2.16 kg 12 cm³/10 min ISO 1133
ELECTRICAL Value Unit Standard
Volume Resistivity >1.E+14 Ohm-cm IEC 60093
Surface Resistivity, ROA >1.E+15 Ohm IEC 60093
Dielectric Strength, in oil, 3.2 mm 17 kV/mm IEC 60243-1
Relative Permittivity, 50/60 Hz 3.3 - IEC 60250
Relative Permittivity, 1 MHz 3.1 - IEC 60250
Dissipation Factor, 50/60 Hz 0.002 - IEC 60250
Dissipation Factor, 1 MHz 0.02 - IEC 60250
FLAME CHARACTERISTICS Value Unit Standard
UL Compliant, 94HB Flame Class Rating (3)(4) 1.5 mm UL 94 by GE
Source GMD, last updated:12/14/1999

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 90 - 100 °C
Drying Time 2 - 4 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 255 - 270 °C
Nozzle Temperature 250 - 265 °C
Front - Zone 3 Temperature 250 - 270 °C
Middle - Zone 2 Temperature 240 - 265 °C
Rear - Zone 1 Temperature 230 - 250 °C
Hopper Temperature 40 - 60 °C
Mold Temperature 60 - 80 °C
Source GMD, last updated:12/14/1999
