Semi Crystalline S-Plastic Xenoy Resin Pellets XD1369 OEM

100KG
MOQ
*USD
Price

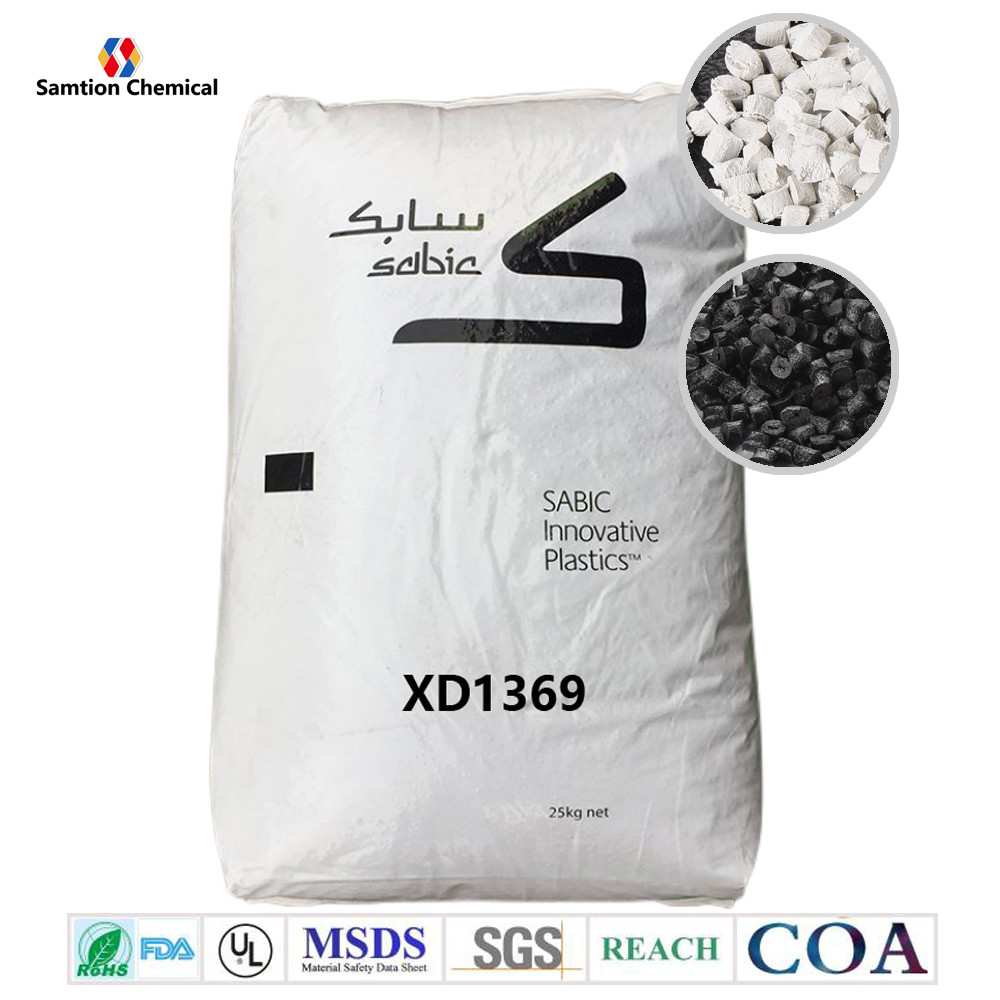

Semi Crystalline S-Plastic Xenoy Resin Pellets XD1369 OEM
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 250°C/5.0 Kg: 37
UL Compliant, 94HB Flame Class Rating (3)(4): 1.5
Highlight:

S-Plastic Xenoy Resin

,

Xenoy Resin XD1369

,

S-Plastic Xenoy XD1369

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Xenoy
Certification: COA/ICP Test/Rohs/MSDS
Model Number: XD1369
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Xenoy XD1369 resin is a semi-crystalline blend, non painted exterior automotive grade with excellent flow for thin wall mouldings.


Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Taber Abrasion, CS-17, 1 kg 30 mg/1000cy S-Plastics Method
Tensile Stress, yield, 50 mm/min 55 MPa ISO 527
Tensile Stress, break, 50 mm/min 40 MPa ISO 527
Tensile Strain, yield, 50 mm/min 4 % ISO 527
Tensile Strain, break, 50 mm/min 80 % ISO 527
Tensile Modulus, 1 mm/min 2300 MPa ISO 527
Flexural Modulus, 2 mm/min 2100 MPa ISO 178
Hardness, H358/30 98 MPa ISO 2039-1
Hardness, Rockwell R 121 - ISO 2039-2
IMPACT Value Unit Standard
Izod Impact, notched 80*10*4 +23°C 43 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 0°C 37 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -10°C 34 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -20°C 18 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 20 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 40 kJ/m² ISO 179/1eA
Charpy Impact, notched, 23°C 35 kJ/m² ISO 179/2C
Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm 20 kJ/m² ISO 179/1eA
Charpy Impact, notched, -20°C 10 kJ/m² ISO 179/2C
THERMAL Value Unit Standard
Thermal Conductivity 0.18 W/m-°C ISO 8302
CTE, 23°C to 80°C, flow 8.E-05 1/°C ISO 11359-2
Ball Pressure Test, 75°C +/- 2°C PASSES - IEC 60695-10-2
Vicat Softening Temp, Rate B/50 117 °C ISO 306
Vicat Softening Temp, Rate B/120 120 °C ISO 306
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm 105 °C ISO 75/Be
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 80 °C ISO 75/Ae
PHYSICAL Value Unit Standard
Mold Shrinkage on Tensile Bar, flow (2) 0.7 - 1 % S-Plastics Method
Density 1.21 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.5 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.15 % ISO 62
Melt Volume Rate, MVR at 250°C/2.16 kg 13 cm³/10 min ISO 1133
Melt Volume Rate, MVR at 250°C/5.0 kg 37 cm³/10 min ISO 1133
ELECTRICAL Value Unit Standard
Volume Resistivity >1.E+14 Ohm-cm IEC 60093
Surface Resistivity, ROA >1.E+15 Ohm IEC 60093
Dielectric Strength, in oil, 3.2 mm 17 kV/mm IEC 60243-1
Relative Permittivity, 50/60 Hz 3.3 - IEC 60250
Relative Permittivity, 1 MHz 3.1 - IEC 60250
Dissipation Factor, 50/60 Hz 0.002 - IEC 60250
Dissipation Factor, 1 MHz 0.02 - IEC 60250
FLAME CHARACTERISTICS Value Unit Standard
UL Compliant, 94HB Flame Class Rating (3)(4) 1.5 mm UL 94 by GE
Source GMD, last updated:12/14/1999

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 90 - 100 °C
Drying Time 2 - 4 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 255 - 270 °C
Nozzle Temperature 250 - 265 °C
Front - Zone 3 Temperature 250 - 270 °C
Middle - Zone 2 Temperature 240 - 265 °C
Rear - Zone 1 Temperature 230 - 250 °C
Hopper Temperature 40 - 60 °C
Mold Temperature 60 - 80 °C
Source GMD, last updated:12/14/1999






Our warehouse

With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!

Semi Crystalline S-Plastic Xenoy Resin Pellets XD1369 OEM 0

For more information please download the datasheet

Semi Crystalline S-Plastic Xenoy Resin Pellets XD1369 OEM 1  S-Plastics Xenoy XD1369.pdf
