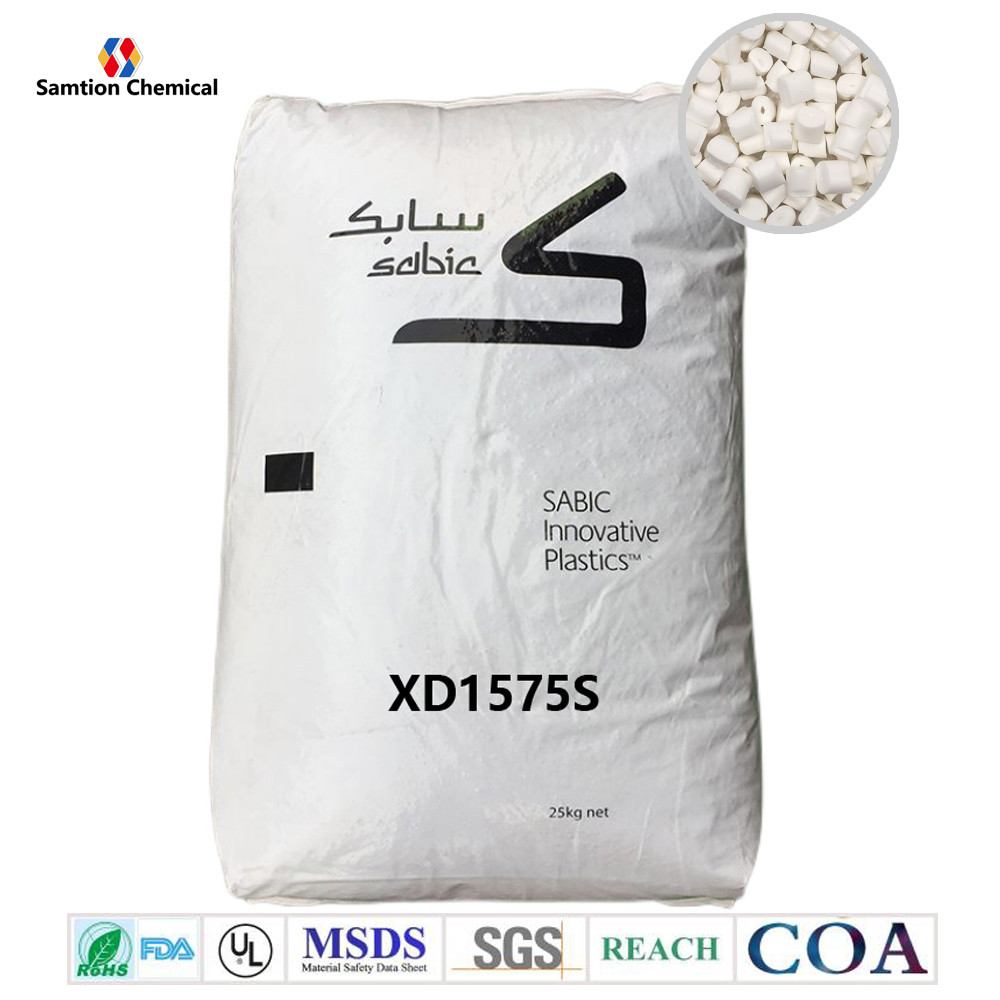

Biodegradable S-Plastic Xenoy Resin Granules XD1575S For Injection Molding

100KG
MOQ
*USD
Price
Biodegradable S-Plastic Xenoy Resin Granules XD1575S For Injection Molding
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 250°C/2.16 Kg: 13
UL Compliant, 94HB Flame Class Rating (3)(4): 1.5
Highlight:

Xenoy Resin XD1575S

,

Xenoy Resin granules

,

Xenoy biodegradable injection molding resin

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Xenoy
Certification: COA/ICP Test/Rohs/MSDS
Model Number: XD1575S
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Xenoy XD1575S resin is a high flow PC+PBT blend with good impact properties and good resistance to occasional solvent and gasoline
contact. XENOY XD1575S has been specially developed for coated exterior body panels. Xenoy XD1575S is a XD1573/XD1622 with
improved hydrolytic stability.


Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Taber Abrasion, CS-17, 1 kg 30 mg/1000cy S-Plastics Method
Tensile Stress, yield, 50 mm/min 50 MPa ISO 527
Tensile Stress, break, 50 mm/min 40 MPa ISO 527
Tensile Strain, yield, 50 mm/min 4.5 % ISO 527
Tensile Strain, break, 50 mm/min 50 % ISO 527
Tensile Modulus, 1 mm/min 2000 MPa ISO 527
Flexural Stress, yield, 2 mm/min 75 MPa ISO 178
Flexural Modulus, 2 mm/min 1900 MPa ISO 178
Hardness, H358/30 95 MPa ISO 2039-1
IMPACT Value Unit Standard
Izod Impact, unnotched 80*10*4 +23°C NB kJ/m² ISO 180/1U
Izod Impact, notched 80*10*4 +23°C 45 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 0°C 40 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -10°C 35 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -20°C 22 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 22 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 45 kJ/m² ISO 179/1eA
Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm NB kJ/m² ISO 179/1eU
Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm NB kJ/m² ISO 179/1eU
THERMAL Value Unit Standard
Thermal Conductivity 0.18 W/m-°C ISO 8302
CTE, 23°C to 80°C, flow 9.5E-05 1/°C ISO 11359-2
Ball Pressure Test, 75°C +/- 2°C PASSES - IEC 60695-10-2
Vicat Softening Temp, Rate B/50 115 °C ISO 306
Vicat Softening Temp, Rate B/120 120 °C ISO 306
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm 110 °C ISO 75/Be
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 75 °C ISO 75/Ae
PHYSICAL Value Unit Standard
Mold Shrinkage on Tensile Bar, flow (2) 0.7 - 1.1 % S-Plastics Method
Density 1.22 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.5 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.15 % ISO 62
Melt Volume Rate, MVR at 250°C/2.16 kg 13 cm³/10 min ISO 1133
ELECTRICAL Value Unit Standard
Volume Resistivity >1.E+14 Ohm-cm IEC 60093
Surface Resistivity, ROA >1.E+15 Ohm IEC 60093
Dielectric Strength, in oil, 3.2 mm 17 kV/mm IEC 60243-1
Relative Permittivity, 50/60 Hz 3.3 - IEC 60250
Relative Permittivity, 1 MHz 3.1 - IEC 60250
Dissipation Factor, 50/60 Hz 0.002 - IEC 60250
Dissipation Factor, 1 MHz 0.02 - IEC 60250
FLAME CHARACTERISTICS Value Unit Standard
UL Compliant, 94HB Flame Class Rating (3)(4) 1.5 mm UL 94 by GE
Source GMD, last updated:12/18/2002

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 90 - 100 °C
Drying Time 2 - 4 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 255 - 270 °C
Nozzle Temperature 250 - 265 °C
Front - Zone 3 Temperature 250 - 270 °C
Middle - Zone 2 Temperature 240 - 265 °C
Rear - Zone 1 Temperature 230 - 250 °C
Hopper Temperature 40 - 60 °C
Mold Temperature 60 - 80 °C
Source GMD, last updated:12/18/2002
THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
