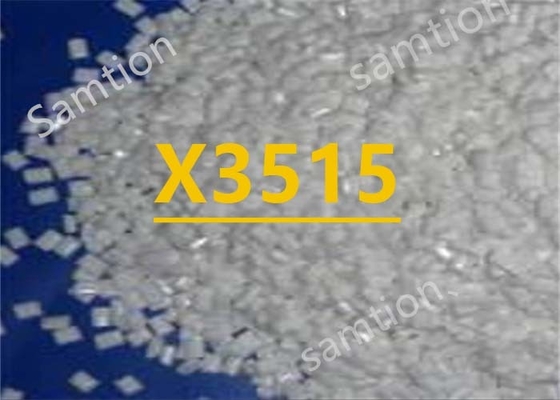

S-Plastics Xenoy X3515 resin is Flame Retardant, Impact Modified, Opaque, Designed for outdoor telecommunication enclosure applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 52 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 42 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 44 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2150 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1860 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 47 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 40 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4.1 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 58 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1960 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 71 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1890 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 747 | J/m | ASTM D 256 |
| Izod Impact, notched, -20°C | 694 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 450 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 427 | J/m | ASTM D 256 |
| Instrumented Impact, Energy @ peak, -20°C | 56 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -30 | 70 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -40°C | 74 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, 23°C | 62 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 53 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 0°C | 47 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 43 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 40 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 53 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 120 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 110 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 74 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 123 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 95 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.8E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 9.8E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.E-04 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 120 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 122 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 114 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 88 | °C | ISO 75/Af |
| Relative Temp Index, Elec | 75 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 75 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 75 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.3 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.8 - 1 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.8 - 1 | % | S-Plastics Method |
| Melt Flow Rate, 250°C/2.16 kgf | 4.8 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 250°C/5.0 kgf | 15.1 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 265°C/2.16kg | 8 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 266°C/5.0 kgf | 26.7 | g/10 min | ASTM D 1238 |
| Density | 1.3 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.5 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Flow Rate, 250°C/2.16 kg | 4 | g/10 min | ISO 1133 |
| Melt Flow Rate, 250°C/5.0 kg | 15 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 250°C/2.16 kg | 4 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 250°C/5.0 kg | 13 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 7 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 265°C/5.0 kg | 23 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Arc Resistance, Tungsten {PLC} | 5 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 0 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.47 | mm | UL 94 by GE |
| UL Compliant, 94-5VA Rating (3)(4) | 2.99 | mm | UL 94 by GE |
| Oxygen Index (LOI) | 28 | % | ISO 4589 |
| Source GMD, last updated:08/22/2006 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 265 | °C |
| Nozzle Temperature | 245 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 265 | °C |
| Middle - Zone 2 Temperature | 245 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 255 | °C |
| Mold Temperature | 50 - 75 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 100 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:08/22/2006 | ||
