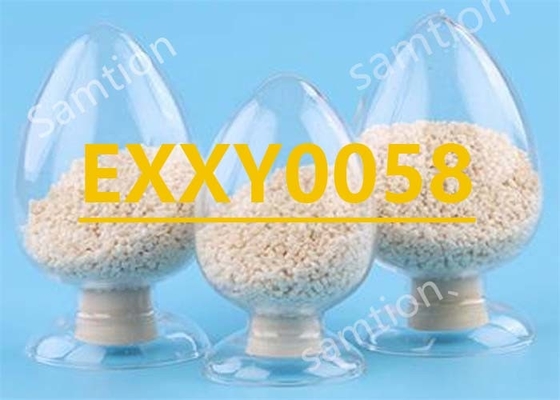

S-Plastics Xenoy EXXY0058 resin is Unfilled PC/PET blend, with high heat dimensional stability and modified for low temperature impact. Used for both painted and unpainted exterior automotive applications such as front grilles, claddings and piller trims.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 50 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 52 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4.9 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | > 70 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2000 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 75 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1950 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Charpy Impact, unnotched, 23°C | > 225 | kJ/m² | ISO 179/2C |
| Charpy Impact, unnotched, -30°C | > 225 | kJ/m² | ISO 179/2C |
| Izod Impact, notched 80*10*4 +23°C | 55 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 40 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 20 | kJ/m² | ISO 180/1A |
| Charpy Impact, notched, 23°C | 55 | kJ/m² | ISO 179/2C |
| Charpy Impact, notched, -30°C | 35 | kJ/m² | ISO 179/2C |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 80°C, flow | 8.9E+00 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/120 | 135 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 100 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.7 - 1 | % | S-Plastics Method |
| Mold Shrinkage on Tensile Bar, xflow (2) | 0.7 - 1 | % | S-Plastics Method |
| Density | 1.21 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 265°C/1.2 kg | 4 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:08/22/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 - 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 265 - 275 | °C |
| Nozzle Temperature | 260 - 275 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 250 - 275 | °C |
| Rear - Zone 1 Temperature | 240 - 270 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 60 - 100 | °C |
| Source GMD, last updated:08/22/2005 | ||
