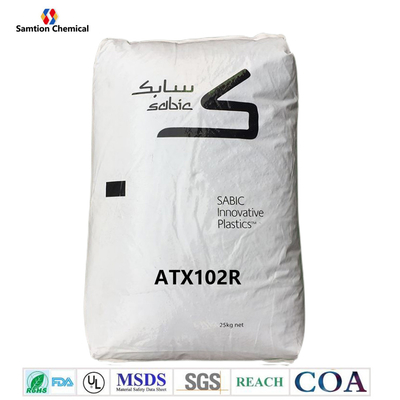

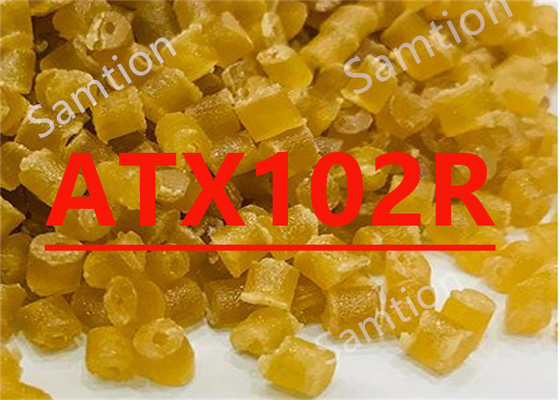

S-Plastics Ultem ATX102R resin is 20% Glass fiber filled, high flow Polyimide blend with internal mold release. ECO Conforming, UL94 V0 and 5VA listing.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 117 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 117 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 4.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4.3 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 6400 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 182 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5880 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 100 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 98 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.3 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 3.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6150 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 170 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5240 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 854 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 95 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 25 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 49 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | 49 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 7 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 5 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 58 | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | 60 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 184 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 169 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 160 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 174 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 164 | °C | ASTM D 648 |
| CTE, -40°C to 150°C, flow | 2.9E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 150°C, xflow | 7.7E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 150°C, flow | 2.9E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 150°C, xflow | 7.7E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | Passes | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 179 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 182 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 162 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 158 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.43 | - | ASTM D 792 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.3 - 0.5 | % | S-Plastics Method |
| Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 40 | g/10 min | ASTM D 1238 |
| Density | 1.43 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.4 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 360°C/5.0 kg | 55 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 4.5E+16 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | 4.E+13 | Ohm | IEC 60093 |
| Dielectric Strength, in oil, 1.6 mm | 25 | kV/mm | IEC 60243-1 |
| Dissipation Factor, 50/60 Hz | 0.0021 | - | IEC 60250 |
| Dissipation Factor, 1 kHz | 0.0034 | - | IEC 60250 |
| Dissipation Factor, 1 MHz | 0.0122 | - | IEC 60250 |
| Comparative Tracking Index | 125 | V | IEC 60112 |
| Comparative Tracking Index, M | 125 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 3 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 3 | mm | UL 94 |
| Source GMD, last updated:10/14/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 135 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 330 - 355 | °C |
| Nozzle Temperature | 325 - 350 | °C |
| Front - Zone 3 Temperature | 330 - 355 | °C |
| Middle - Zone 2 Temperature | 320 - 345 | °C |
| Rear - Zone 1 Temperature | 310 - 330 | °C |
| Mold Temperature | 95 - 135 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:10/14/2003 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Ultem ATX102R.pdf |
|
