S-Plastics Ultem resin series amorphous thermoplastic polyetherimide (PEI) resins have excellent heat resistance, high strength and rigidity, and a wide range of chemical resistance. Ultem offers transparent and opaque custom colors and glass fill levels. In addition, Ultem copolymers can meet higher thermal, chemical and elastic requirements.Ultem resin uniquely balances mechanical and processing properties, providing design engineers with excellent flexibility and freedom.
Ultem PEI advantages:

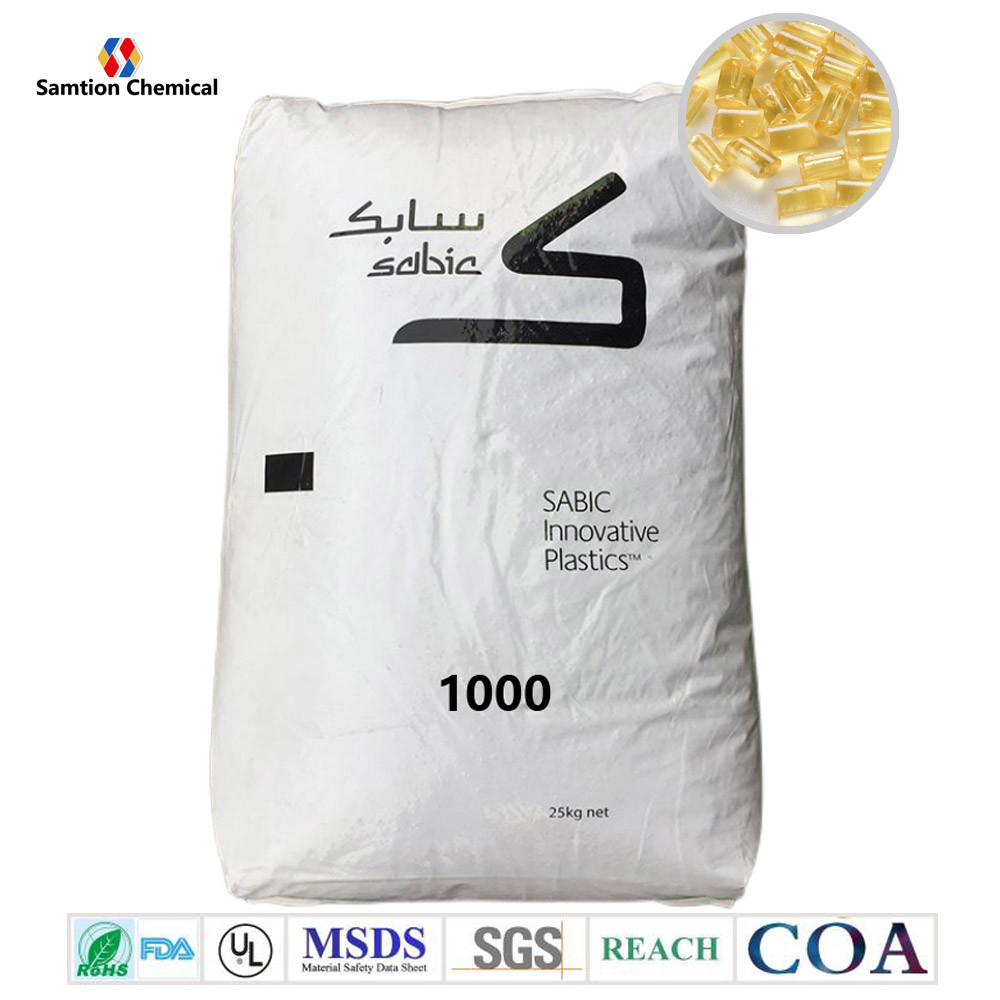

S-Plastics Ultem PEI 1000 is transparent, standard flow Polyetherimide (Tg 217C). ECO Conforming, UL94 V0 and 5VA listing. US FDA and EU Food Contact compliant, NSF 51 listing, compliant in natural color. Effective June, 2007 this grade will no longer be supported with biocompatibility information and should not be used for medical applications which require biocompatibility. Alternative grade HU1000.
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 5 mm/min | 110 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 5 mm/min | 7 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 60 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 3580 | MPa | ASTM D 638 |
Flexural Stress, yld, 2.6 mm/min, 100 mm span | 165 | MPa | ASTM D 790 |
Flexural Modulus, 2.6 mm/min, 100 mm span | 3510 | MPa | ASTM D 790 |
Hardness, Rockwell M | 109 | - | ASTM D 785 |
Taber Abrasion, CS-17, 1 kg | 10 | mg/1000cy | ASTM D 1044 |
IMPACT | Value | Unit | Standard |
Izod Impact, unnotched, 23°C | 1335 | J/m | ASTM D 4812 |
Izod Impact, notched, 23°C | 53 | J/m | ASTM D 256 |
Izod Impact, Reverse Notched, 3.2 mm | 1335 | J/m | ASTM D 256 |
Gardner, 23°C | 36 | J | ASTM D 3029 |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 218 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
HDT, 1.82 MPa, 6.4 mm, unannealed | 201 | °C | ASTM D 648 |
CTE, -20°C to 150°C, flow | 5.58E-05 | 1/°C | ASTM E 831 |
CTE, -20°C to 150°C, xflow | 5.4E-05 | 1/°C | ASTM E 831 |
Thermal Conductivity | 0.22 | W/m-°C | ASTM C 177 |
Relative Temp Index, Elec | 170 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 170 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 170 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.27 | - | ASTM D 792 |
Water Absorption, 24 hours | 0.25 | % | ASTM D 570 |
Water Absorption, equilibrium, 23C | 1.25 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
Melt Flow Rate, 337°C/6.6 kgf | 9 | g/10 min | ASTM D 1238 |
Poisson's Ratio | 0.3 | - | ASTM D 638 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
Dielectric Strength, in air, 1.6 mm | 32.7 | kV/mm | ASTM D 149 |
Dielectric Strength, in oil, 1.6 mm | 27.9 | kV/mm | ASTM D 149 |
Dielectric Strength, in oil, 3.2 mm | 19.6 | kV/mm | ASTM D 149 |
Relative Permittivity, 100 Hz | 3.15 | - | ASTM D 150 |
Relative Permittivity, 1 kHz | 3.15 | - | ASTM D 150 |
Dissipation Factor, 100 Hz | 0.0015 | - | ASTM D 150 |
Dissipation Factor, 1 kHz | 0.0012 | - | ASTM D 150 |
Dissipation Factor, 2450 MHz | 0.0025 | - | ASTM D 150 |
Arc Resistance, Tungsten {PLC} | 5 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 3 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
Oxygen Index (LOI) | 47 | % | ASTM D 2863 |
NBS Smoke Density, Flaming, Ds 4 min | 0.7 | - | ASTM E 662 |
Source GMD, last updated:02/24/2003 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 150 | °C |
Drying Time | 4 - 6 | hrs |
Drying Time (Cumulative) | 24 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 350 - 400 | °C |
Nozzle Temperature | 345 - 400 | °C |
Front - Zone 3 Temperature | 345 - 400 | °C |
Middle - Zone 2 Temperature | 340 - 400 | °C |
Rear - Zone 1 Temperature | 330 - 400 | °C |
Mold Temperature | 135 - 165 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 40 - 70 | rpm |
Shot to Cylinder Size | 40 - 60 | % |
Vent Depth | 0.025 - 0.076 | mm |
Parameter | ||
Extrusion Blow Molding | Value | Unit |
Drying Temperature | 140 - 150 | °C |
Drying Time | 4 - 6 | hrs |
Drying Time (Cumulative) | 24 | hrs |
Maximum Moisture Content | 0.01 - 0.02 | % |
Melt Temperature (Parison) | 320 - 355 | °C |
Barrel - Zone 1 Temperature | 325 - 350 | °C |
Barrel - Zone 2 Temperature | 330 - 355 | °C |
Barrel - Zone 3 Temperature | 330 - 355 | °C |
Barrel - Zone 4 Temperature | 330 - 355 | °C |
Adapter - Zone 5 Temperature | 330 - 355 | °C |
Head - Zone 6 - Top Temperature | 330 - 355 | °C |
Head - Zone 7 - Bottom Temperature | 330 - 355 | °C |
Screw Speed | 10 - 70 | rpm |
Mold Temperature | 65 - 175 | °C |
Die Temperature | 325 - 355 | °C |
Source GMD, last updated:02/24/2003 |
Available in stock with favorable price
1.1000 series
1000,MI9.0; 1010,MI18.0; Hu1000, medical grade.
2.2000 series, add GF
2100, add 10%GF, MI 7.0;
2110, add 10%GF, MI 11.0;
2200, add 20%GF, MI 6.0;
2210, add 20%GF, MI 8.4;
2300, add 30%GF, MI 5.0;
2310, add 30%GF, MI 7.6;
3. Others
MD130, MD131, AUT195, ATX200, etc;
In recent years, we have deeply cultivated the domestic market and actively explored foreign markets.Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment, transportation and other industries.
Samtion chemical supplies engineering plastics and special modified materials of S-Plastics and other brands.Our authentic products are guaranteed, with complete qualifications and superior supply capacity and price advantages.
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS, SGS, REACH, FDA, EU, UL, COC / COA certificates!!

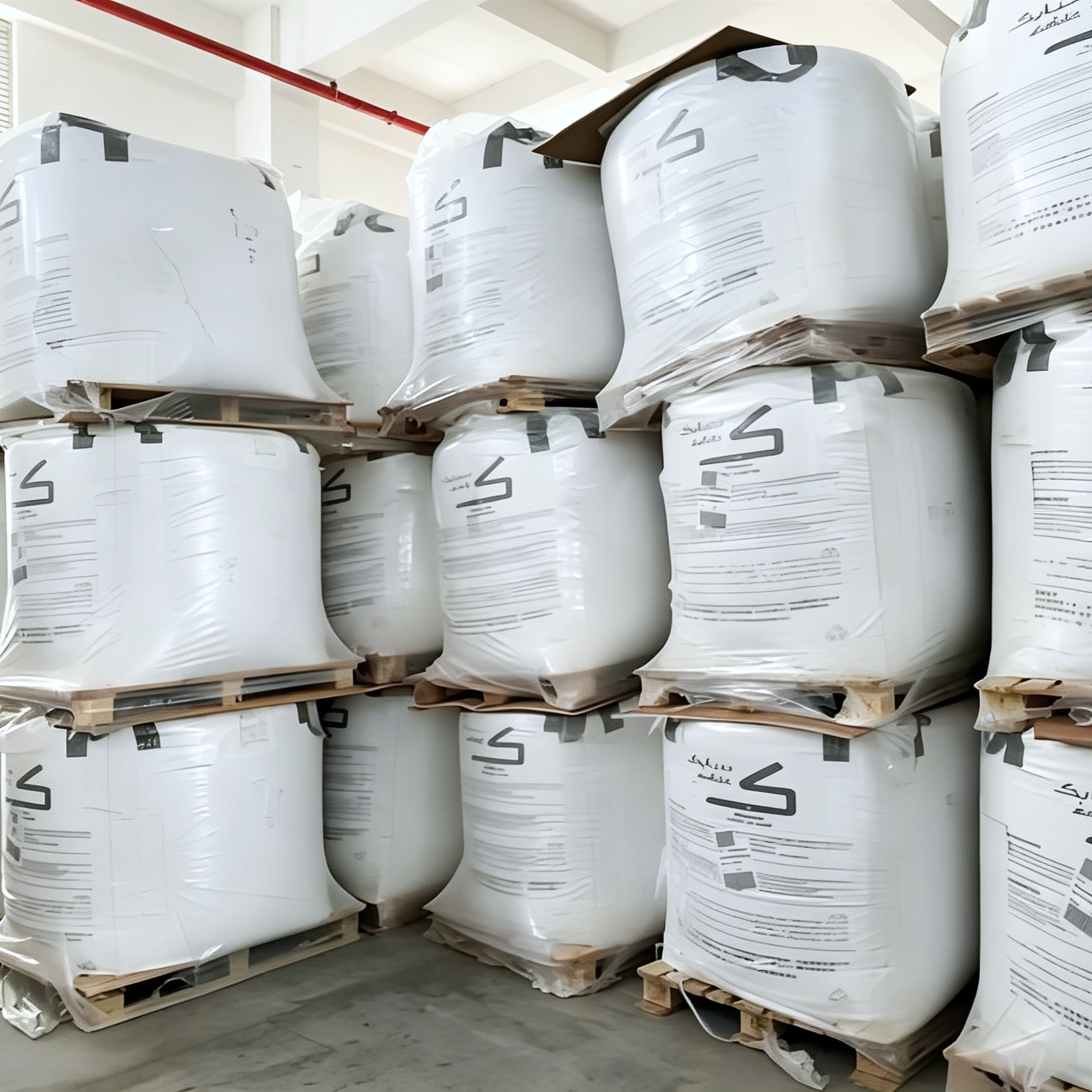

With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!
For more information please download the datasheet |
|
S-Plastics PEI Ultem 1000.pdf |
