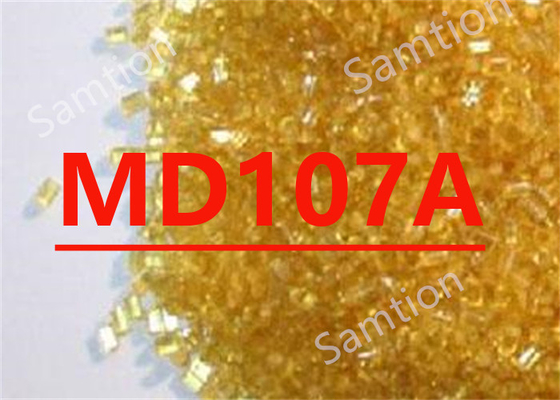

S-Plastics Ultem MD107A resin is PRELIMINARY: Easy flow, opaque only. FDA. Repeat food service applications.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 110 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 64 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3790 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 172 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3720 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 109 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Gardner, 23°C | 33 | J | ASTM D 3029 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 207 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 200 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.37 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.25 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 1.25 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 16.1 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:01/13/2000 | |||
|
For more information please download the datasheet |
|
 |
S-Plastics Ultem MD107A.pdf |
|
