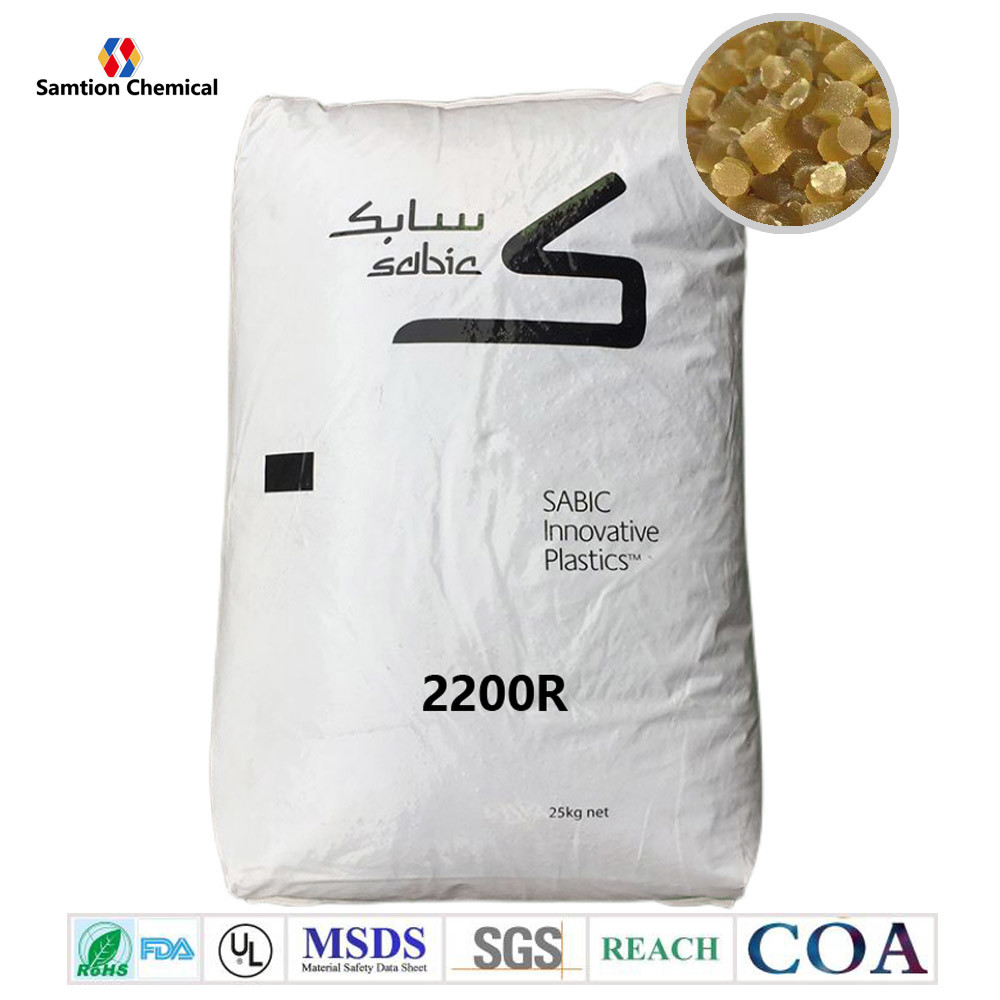

S-Plastics Ultem 2200R resin is 20% Glass fiber filled, standard flow Polyetherimide (Tg 217C) with internal mold release. ECO Conforming, UL94 V0 and 5VA listing.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, brk, Type I, 5 mm/min | 131 | MPa | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 4 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 6890 | MPa | ASTM D 638 |
Flexural Stress, brk, 2.6 mm/min, 100 mm span | 227 | MPa | ASTM D 790 |
Flexural Modulus, 2.6 mm/min, 100 mm span | 6890 | MPa | ASTM D 790 |
Hardness, Rockwell M | 114 | - | ASTM D 785 |
IMPACT | Value | Unit | Standard |
Izod Impact, unnotched, 23°C | 480 | J/m | ASTM D 4812 |
Izod Impact, notched, 23°C | 90 | J/m | ASTM D 256 |
Izod Impact, Reverse Notched, 3.2 mm | 512 | J/m | ASTM D 256 |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 220 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
HDT, 1.82 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
CTE, -20°C to 150°C, flow | 2.52E-05 | 1/°C | ASTM E 831 |
Relative Temp Index, Elec | 170 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 170 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 170 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.42 | - | ASTM D 792 |
Water Absorption, 24 hours | 0.19 | % | ASTM D 570 |
Water Absorption, equilibrium, 23C | 1.1 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
Melt Flow Rate, 337°C/6.6 kgf | 6.5 | g/10 min | ASTM D 1238 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 7.E+16 | Ohm-cm | ASTM D 257 |
Dielectric Strength, in oil, 1.6 mm | 26.3 | kV/mm | ASTM D 149 |
Relative Permittivity, 1 kHz | 3.5 | - | ASTM D 150 |
Dissipation Factor, 1 kHz | 0.0015 | - | ASTM D 150 |
Dissipation Factor, 2450 MHz | 0.0049 | - | ASTM D 150 |
Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-0 Flame Class Rating (3) | 0.4 | mm | UL 94 |
UL Recognized, 94-5VA Rating (3) | 1.9 | mm | UL 94 |
Oxygen Index (LOI) | 50 | % | ASTM D 2863 |
NBS Smoke Density, Flaming, Ds 4 min | 1.3 | - | ASTM E 662 |
Source GMD, last updated:01/12/2000 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 150 | °C |
Drying Time | 4 - 6 | hrs |
Drying Time (Cumulative) | 24 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 350 - 400 | °C |
Nozzle Temperature | 345 - 400 | °C |
Front - Zone 3 Temperature | 345 - 400 | °C |
Middle - Zone 2 Temperature | 340 - 400 | °C |
Rear - Zone 1 Temperature | 330 - 400 | °C |
Mold Temperature | 135 - 165 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 40 - 70 | rpm |
Shot to Cylinder Size | 40 - 60 | % |
Vent Depth | 0.025 - 0.076 | mm |
Source GMD, last updated:01/12/2000 |
Available in stock with favorable price
1.1000 series
1000,MI9.0; 1010,MI18.0; Hu1000, medical grade.
2.2000 series, add GF
2100, add 10%GF, MI 7.0;
2110, add 10%GF, MI 11.0;
2200, add 20%GF, MI 6.0;
2210, add 20%GF, MI 8.4;
2300, add 30%GF, MI 5.0;
2310, add 30%GF, MI 7.6;
3. Others
MD130, MD131, AUT195, ATX200, etc;
