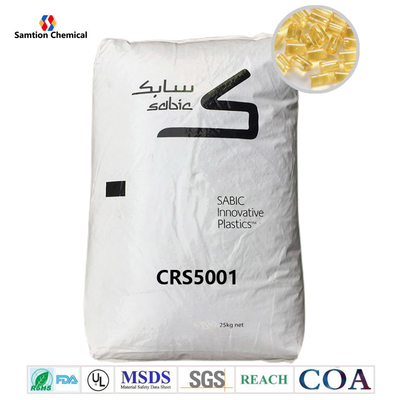

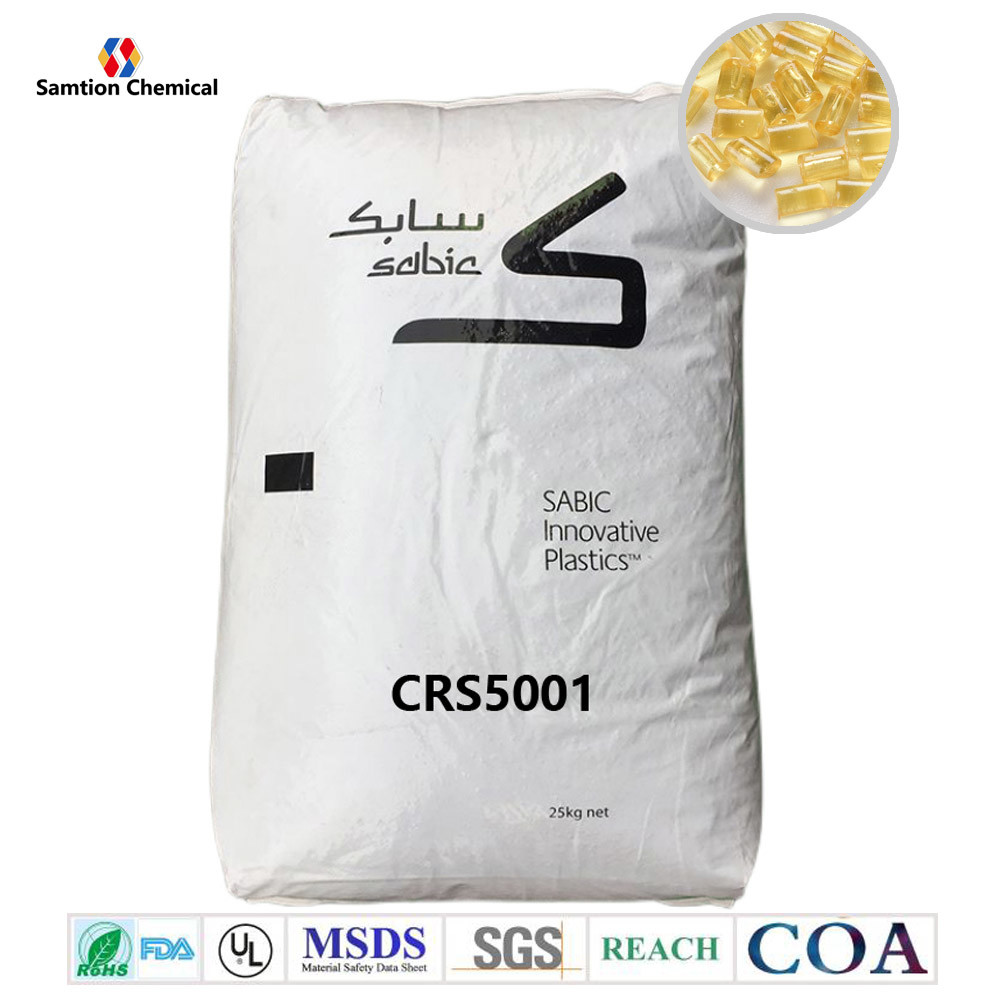

S-Plastics Ultem CRS5001 resin isTransparent, Standard flow Polyimide copolymer (Tg 225C) with enhanced chemical resistance to strong acids, bases, aromatics,and ketones. ECO conforming, UL94 V0 listing.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 99 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 60 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2890 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 137 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3100 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 123 | - | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 10 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1281 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 64 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 2082 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 207 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 160 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 160 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 160 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.28 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.16 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 4.2 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.1E+17 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 5.8E+16 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 3.2 mm | 17.9 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.12 | - | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.0017 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 5 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 0 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 3 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 365 - 390 | °C |
| Nozzle Temperature | 360 - 380 | °C |
| Front - Zone 3 Temperature | 365 - 390 | °C |
| Middle - Zone 2 Temperature | 355 - 375 | °C |
| Rear - Zone 1 Temperature | 345 - 365 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:01/13/2000 | ||
Available in stock with favorable price
1.1000 series
1000,MI9.0； 1010,MI18.0； Hu1000, medical grade.
2.2000 series, add GF
2100, add 10%GF, MI 7.0;
2110, add 10%GF, MI 11.0;
2200, add 20%GF, MI 6.0;
2210, add 20%GF, MI 8.4;
2300, add 30%GF, MI 5.0;
2310, add 30%GF, MI 7.6;
3. Others
MD130, MD131, AUT195, ATX200, etc;
