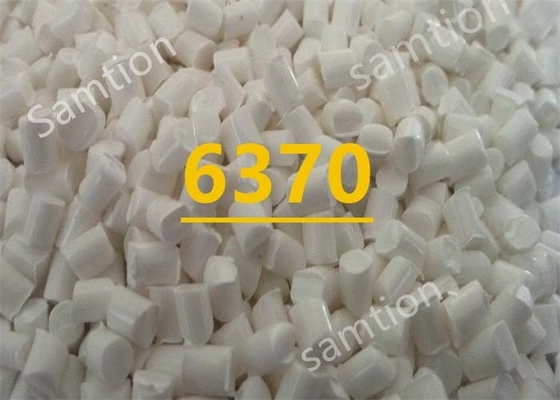

S-Plastics Xenoy 6370 resin is 30% glass-reinforced, impact modified thermoplastic alloy. Improved toughness and ductility.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 91 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4 | % | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 137 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5370 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 109 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 640 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 170 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 112 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 4 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, 23°C | 16 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 204 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 148 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.7E-05 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, flow | 1.98E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 140 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 130 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 140 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.44 | - | ASTM D 792 |
| Specific Volume | 0.69 | cm³/g | ASTM D 792 |
| Water Absorption, 24 hours | 0.09 | % | ASTM D 570 |
| Mold Shrinkage, flow, 0.75-2.3 mm | 0.3 - 0.4 | % | S-Plastics Method |
| Mold Shrinkage, flow, 2.3-4.6 mm | 0.4 - 0.5 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 0.75-2.3 mm | 0.4 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 2.3-4.6 mm | 0.7 - 0.9 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 4.8E+15 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 20.8 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 27.5 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 4 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.9 | - | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.003 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.02 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 5 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 1 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 3 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.49 | mm | UL 94 |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 280 | °C |
| Nozzle Temperature | 255 - 275 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 255 - 275 | °C |
| Rear - Zone 1 Temperature | 250 - 270 | °C |
| Mold Temperature | 65 - 95 | °C |
| Back Pressure | 0.3 - 0.6 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 50 - 80 | % |
| Vent Depth | 0.013 - 0.02 | mm |
| Source GMD, last updated:12/29/1999 | ||
