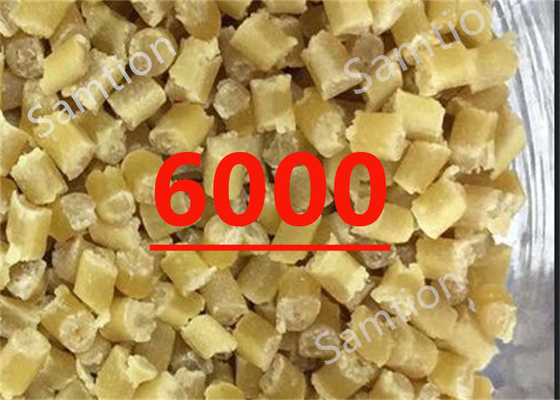

S-Plastics Ultem 6000 resin is Transparent, standard flow Polyimide copolymer (Tg 235C). ECO Conforming, UL94 V0 listing.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 113 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 113 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 7.5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 17 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3510 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 172 | MPa | ASTM D 790 |
| Flexural Stress, brk, 2.6 mm/min, 100 mm span | 89 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3580 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 110 | - | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 8 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1335 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 42 | J/m | ASTM D 256 |
| Izod Impact, Reverse Notched, 3.2 mm | 971 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 233 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 221 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 211 | °C | ASTM D 648 |
| CTE, -20°C to 150°C, flow | 5.22E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, xflow | 5.4E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 105 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.29 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.28 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 367°C/6.6 kgf | 15.4 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in oil, 1.6 mm | 29.5 | kV/mm | ASTM D 149 |
| Relative Permittivity, 1 kHz | 3 | - | ASTM D 150 |
| Dissipation Factor, 1 kHz | 0.001 | - | ASTM D 150 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.47 | mm | UL 94 |
| Oxygen Index (LOI) | 44 | % | ASTM D 2863 |
| NBS Smoke Density, Flaming, Ds 4 min | 5 | - | ASTM E 662 |
| Source GMD, last updated:01/13/2000 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 380 - 405 | °C |
| Nozzle Temperature | 375 - 400 | °C |
| Front - Zone 3 Temperature | 380 - 405 | °C |
| Middle - Zone 2 Temperature | 370 - 395 | °C |
| Rear - Zone 1 Temperature | 360 - 380 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:01/13/2000 | ||
