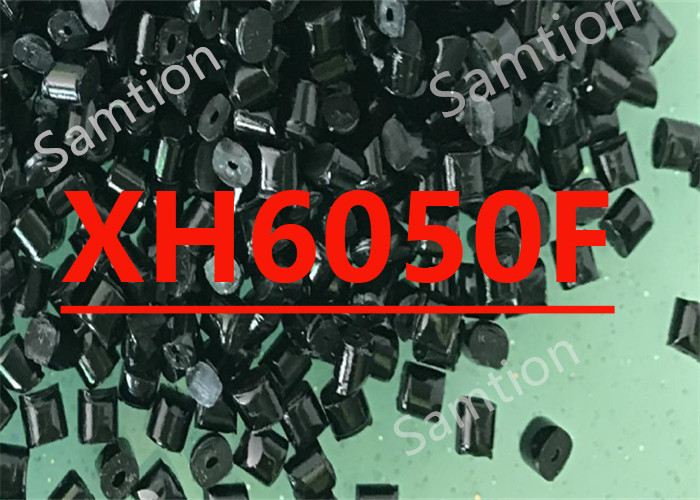

S-Plastics Ultem XH6050F resin is Transparent, enhanced flow Polyimidesulfone copolymer (Tg 247C). ECO Conforming. US FDA Compliant. Resin is subject to U.S.Commerce Control Laws (15CFR Chapter VII, Part 774).
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 96 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 96 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 25 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 3510 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 159 | MPa | ASTM D 790 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 155 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3170 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 3100 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 95 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 78 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 8.5 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 16.8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3110 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 123 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 3080 | MPa | ISO 178 |
| Hardness, H358/30 | 140 | MPa | ISO 2039-1 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | NB | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 69 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 74 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 33 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 5 | kJ/m² | ISO 180/1A |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 242 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 222 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 217 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 237 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 230 | °C | ASTM D 648 |
| CTE, -40°C to 150°C, flow | 5.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 150°C, xflow | 5.E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.22 | W/m-°C | ASTM E 1530 |
| CTE, 23°C to 150°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 150°C, xflow | 5.E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | Passes | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 242 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 238 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 228 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.3 | - | ASTM D 792 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 367°C/6.6 kgf | 12.5 | g/10 min | ASTM D 1238 |
| Density | 1.3 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 1.75 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.6 | % | ISO 62 |
| Melt Volume Rate, MVR at 360°C/5.0 kg | 8 | cm³/10 min | ISO 1133 |
| OPTICAL | Value | Unit | Standard |
| Light Transmission | 58 | % | ASTM D 1003 |
| Haze | 2 | % | ASTM D 1003 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in oil, 3.2 mm | 17 | kV/mm | ASTM D 149 |
| Dissipation Factor, 50/60 Hz | 0.025 | - | IEC 60250 |
| Dissipation Factor, 100 Hz | 0.008 | - | IEC 60250 |
| Dissipation Factor, 1 kHz | 0.001 | - | IEC 60250 |
| Dissipation Factor, 1 MHz | 0.007 | - | IEC 60250 |
| Comparative Tracking Index | 175 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| Glow Wire Flammability Index 960°C, passes at | 3.2 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 3.0 mm | 850 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 45 | % | ISO 4589 |
| Source GMD, last updated:12/14/2004 | |||
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 380 - 405 | °C |
| Nozzle Temperature | 375 - 400 | °C |
| Front - Zone 3 Temperature | 380 - 405 | °C |
| Middle - Zone 2 Temperature | 370 - 395 | °C |
| Rear - Zone 1 Temperature | 360 - 380 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:12/14/2004 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Ultem XH6050F.pdf |
|
