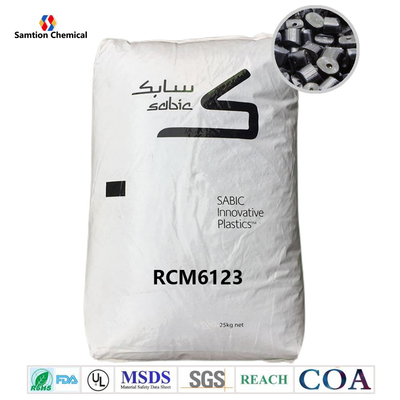

S-Plastics Cycoloy RCM6123 resin is an injection moldable filled PC/ABS blend with non-brominated and non-chlorinated flame retardant. It
contains 30% post consumer recycle content with a UL-94 V0 rating @ 1.2mm. Developed for thin wall applications that require high flow
and high stiffness performance. Limited availability and restricted to dark color only.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 5 mm/min | 50 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 5 mm/min | 40 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 5 mm/min | 3.3 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 26 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 4400 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 97 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 4300 | MPa | ASTM D 790 |
Tensile Stress, yield, 5 mm/min | 55 | MPa | ISO 527 |
Tensile Stress, break, 5 mm/min | 35 | MPa | ISO 527 |
Tensile Strain, yield, 5 mm/min | 3.8 | % | ISO 527 |
Tensile Strain, break, 5 mm/min | 30 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 4500 | MPa | ISO 527 |
Flexural Stress, yield, 2 mm/min | 97 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 4400 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 60 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 56 | J | ASTM D 3763 |
Izod Impact, notched 80*10*3 +23°C | 5 | kJ/m² | ISO 180/1A |
Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 5 | kJ/m² | ISO 179/1eA |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 91 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 82 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 4.2E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 4.9E-05 | 1/°C | ASTM E 831 |
CTE, 23°C to 80°C, flow | 6.2E-05 | 1/°C | ISO 11359-2 |
CTE, 23°C to 80°C, xflow | 7.8E-05 | 1/°C | ISO 11359-2 |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 85 | °C | ISO 75/Af |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.3 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm (5) | 0.3 - 0.4 | % | S-Plastics Method |
Melt Flow Rate, 260°C/2.16 kgf | 11 | g/10 min | ASTM D 1238 |
Density | 1.3 | g/cm³ | ISO 1183 |
Moisture Absorption (23°C / 50% RH) | 0.04 | % | ISO 62 |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-0 Flame Class Rating (3) | 1.2 | mm | UL 94 |
Source GMD, last updated:2010/02/25 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 80 - 90 | °C |
Drying Time | 3 - 4 | hrs |
Drying Time (Cumulative) | 8 | hrs |
Maximum Moisture Content | 0.04 | % |
Melt Temperature | 245 - 275 | °C |
Nozzle Temperature | 245 - 275 | °C |
Front - Zone 3 Temperature | 245 - 275 | °C |
Middle - Zone 2 Temperature | 220 - 265 | °C |
Rear - Zone 1 Temperature | 220 - 255 | °C |
Mold Temperature | 60 - 80 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 40 - 70 | rpm |
Shot to Cylinder Size | 30 - 80 | % |
Vent Depth | 0.038 - 0.076 | mm |
Source GMD, last updated:2010/02/25 |
