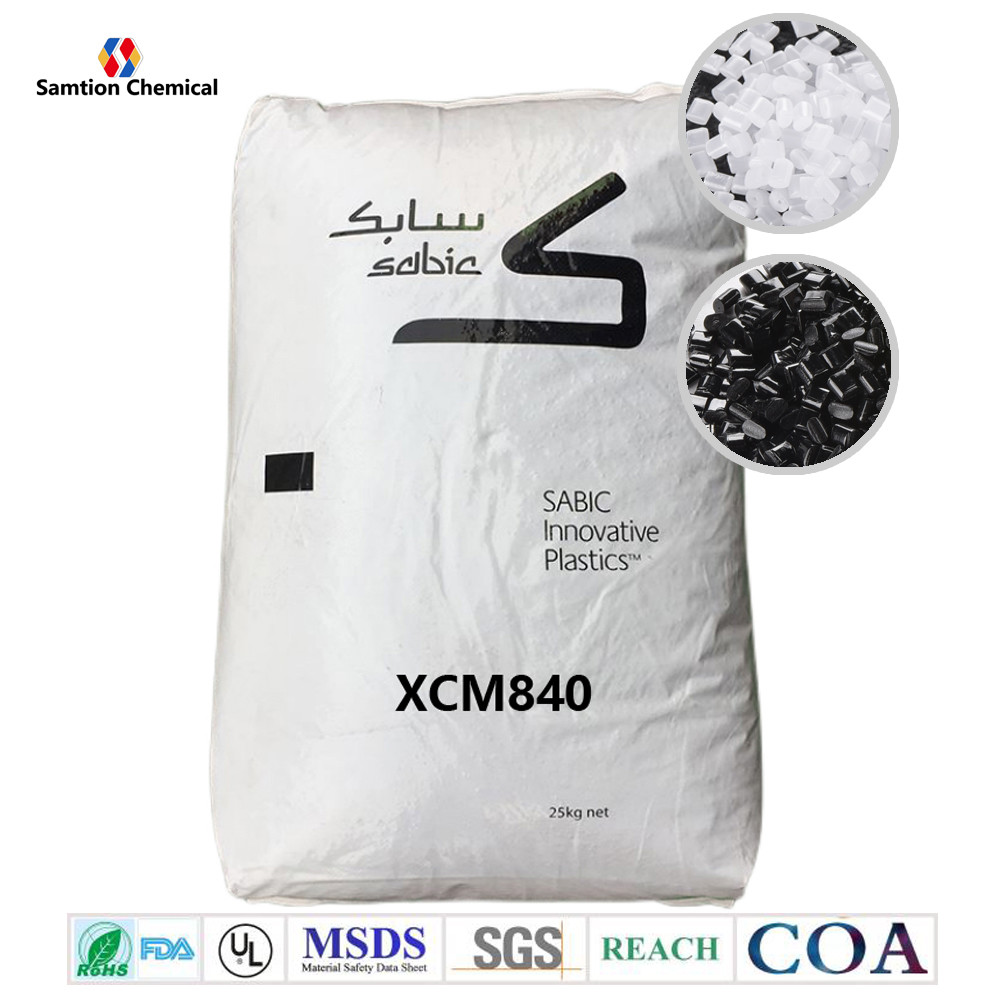

S-Plastics Cycoloy XCM840 resin is High stiffness PC/ABS blend offering practical impact, low CTE, high heat resistance, with good aesthetics suitable for injection molding
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 59 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 3.7 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 4700 | MPa | ASTM D 638 |
| Tensile Stress, yield, 5 mm/min | 59 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 47 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.6 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 64 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4470 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 100 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4200 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Instrumented Impact Total Energy, 23°C | 60 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*3 +23°C | 14 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 37 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 10 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 124 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 4.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 4.E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 9.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 137 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 122 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.27 | - | ASTM D 792 |
| Density | 1.27 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 10 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 265°C/5.0 kg | 12 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:2009/08/20 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 100 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 270 - 300 | °C |
| Nozzle Temperature | 260 - 290 | °C |
| Front - Zone 3 Temperature | 270 - 300 | °C |
| Middle - Zone 2 Temperature | 265 - 290 | °C |
| Rear - Zone 1 Temperature | 260 - 270 | °C |
| Mold Temperature | 60 - 100 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:2009/08/20 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Cycoloy XCM840.pdf |
|
