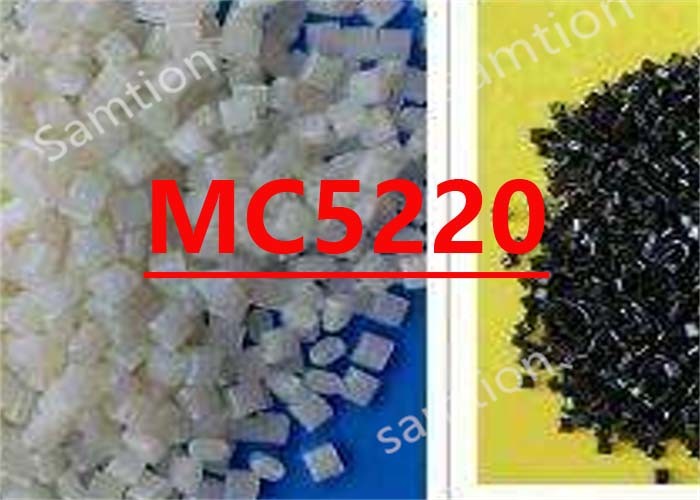

S-Plastics Cycoloy MC5220 resin
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 107 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 113 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 5880 | MPa | ISO 178 |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 5.E-05 | 1/°C | ISO 11359-2 |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.2 - 0.4 | % | S-Plastics Method |
| Density | 1.33 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 27 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+16 | Ohm-cm | IEC 60093 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.5 | mm | UL 94 |
| Source GMD, last updated:07/12/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 100 - 110 | °C |
| Drying Time | 2 - 4 | hrs |
| Melt Temperature | 240 - 280 | °C |
| Mold Temperature | 50 - 80 | °C |
| Source GMD, last updated:07/12/2001 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics cycoloy MC5220.pdf |
|
