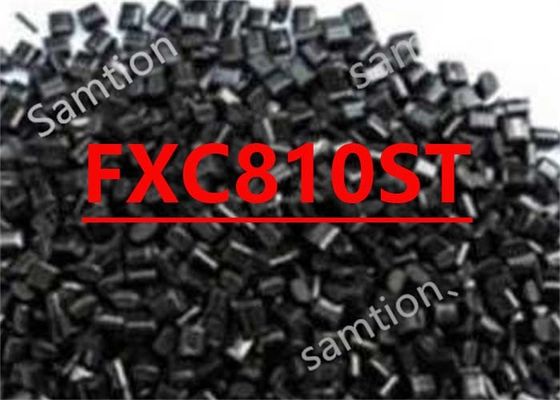

S-Plastics Cycoloy FXC810ST resin is a multi-purpose PC+ABS injection moulding grade, suitable for those applications that require Stone colour effects. The colour package may effect performance.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Taber Abrasion, CS-17, 1 kg | 63 | mg/1000cy | S-Plastics Method |
Tensile Stress, yield, 50 mm/min | 55 | MPa | ISO 527 |
Tensile Stress, break, 50 mm/min | 45 | MPa | ISO 527 |
Tensile Strain, yield, 50 mm/min | 5 | % | ISO 527 |
Tensile Strain, break, 50 mm/min | 9 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2400 | MPa | ISO 527 |
Flexural Stress, yield, 2 mm/min | 88 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2500 | MPa | ISO 178 |
Hardness, H358/30 | 99 | MPa | ISO 2039-1 |
Hardness, Rockwell R | 121 | - | ISO 2039-2 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched 80*10*3 +23°C | 25 | kJ/m² | ISO 180/1A |
Izod Impact, notched 80*10*3 -30°C | 12 | kJ/m² | ISO 180/1A |
Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 25 | kJ/m² | ISO 179/1eA |
Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 12 | kJ/m² | ISO 179/1eA |
THERMAL | Value | Unit | Standard |
Thermal Conductivity | 0.2 | W/m-°C | ISO 8302 |
CTE, -40°C to 40°C, flow | 8.E-05 | 1/°C | ISO 11359-2 |
CTE, -40°C to 40°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
Vicat Softening Temp, Rate B/50 | 128 | °C | ISO 306 |
Vicat Softening Temp, Rate B/120 | 130 | °C | ISO 306 |
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 128 | °C | ISO 75/Be |
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 108 | °C | ISO 75/Ae |
Relative Temp Index, Elec | 105 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 80 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 105 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Mold Shrinkage on Tensile Bar, flow (2) | 0.4 - 0.6 | % | S-Plastics Method |
Density | 1.15 | g/cm³ | ISO 1183 |
Water Absorption, (23°C/sat) | 0.6 | % | ISO 62 |
Moisture Absorption (23°C / 50% RH) | 0.2 | % | ISO 62 |
Melt Volume Rate, MVR at 260°C/5.0 kg | 22 | cm³/10 min | ISO 1133 |
ELECTRICAL | Value | Unit | Standard |
Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Compliant, 94HB Flame Class Rating (3)(4) | 1.2 | mm | UL 94 by GE |
UL Compliant, 94HB Flame Class Rating 2nd value (3)(4) | 3 | mm | UL 94 by GE |
Source GMD, last updated:07/09/2002 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 100 - 110 | °C |
Drying Time | 2 - 4 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 260 - 290 | °C |
Nozzle Temperature | 240 - 280 | °C |
Front - Zone 3 Temperature | 250 - 290 | °C |
Middle - Zone 2 Temperature | 250 - 290 | °C |
Rear - Zone 1 Temperature | 230 - 260 | °C |
Hopper Temperature | 60 - 80 | °C |
Mold Temperature | 60 - 90 | °C |
Source GMD, last updated:07/09/2002 |
For more information please download the datasheet |
|
S-Plastics cycoloy FXC810ST.pdf |
