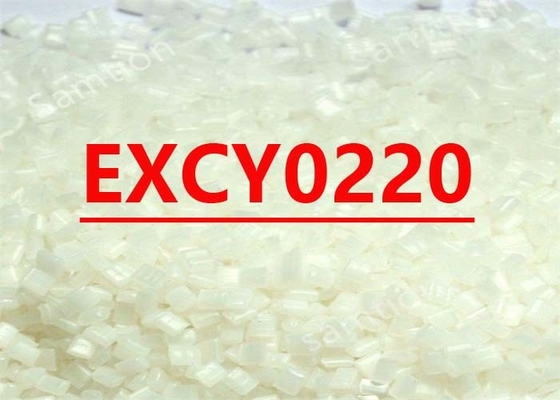

S-Plastics Cycoloy EXCY0220 resin is non-chlorinated and brominated flame retardant Cycoloy for low smoke extrusion epplications
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 64 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 39 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.7 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 45 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4900 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 105 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4600 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 180 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/120 | 128 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 115 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.3 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 8 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.6 | mm | UL 94 by GE |
| UL Compliant, 94-5VB Rating (3)(4) | 2 | mm | UL 94 by GE |
| NBS Smoke Density, Flaming, Ds 1.5 min | 1 | - | ASTM E 662 |
| NBS Smoke Density, Flaming, Ds 4 min | 36 | - | ASTM E 662 |
| Source GMD, last updated:08/15/2007 | |||
| Parameter | ||
| Sheet Extrusion | Value | Unit |
| Drying Temperature | 110 - 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 250 - 270 | °C |
| Barrel - Zone 1 Temperature | 195 - 205 | °C |
| Barrel - Zone 2 Temperature | 200 - 220 | °C |
| Barrel - Zone 3 Temperature | 220 - 240 | °C |
| Barrel - Zone 4 Temperature | 230 - 260 | °C |
| Adapter Temperature | 230 - 260 | °C |
| Die Temperature | 230 - 245 | °C |
| Roll Stack Temp - Top | 100 - 110 | °C |
| Roll Stack Temp - Middle | 110 - 120 | °C |
| Roll Stack Temp - Bottom | 145 - 155 | °C |
| Source GMD, last updated:08/15/2007 | ||
|
