S-Plastic Xylex EXXY0009 Unreinforced, PC+Polyester Alloy With High Heat Properties For Extrusion Applications.

100KG
MOQ
*USD
Price
S-Plastic Xylex EXXY0009 Unreinforced, PC+Polyester Alloy With High Heat Properties For Extrusion Applications.
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 265°C/2.16 Kg: 8
High Heat Properties: YES
Unreinforced: Yes
Applications: Extrusion
Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Xylex
Certification: COA/ICP Test/Rohs/MSDS
Model Number: EXXY0009
Payment & Shipping Terms

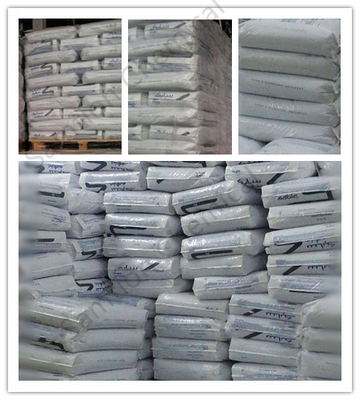

Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Xylex EXXY0009 resin is WILL BE COMMERCIALIZED AS X7001EX. Unreinforced, PC+polyester alloy with high heat properties for extrusion applications.

​Property

TYPICAL PROPERTIES (1) 　 　 　
MECHANICAL Value Unit Standard
Tensile Stress, yield, 50 mm/min 55 MPa ISO 527
Tensile Stress, break, 50 mm/min 57 MPa ISO 527
Tensile Strain, break, 50 mm/min >150 % ISO 527
Tensile Modulus, 1 mm/min 2000 MPa ISO 527
Flexural Stress, break, 2 mm/min 72 MPa ISO 178
Flexural Modulus, 2 mm/min 2100 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, notched 80*10*4 +23°C 10 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -10°C 5 kJ/m² ISO 180/1A
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 121 °C ASTM D 1525
Thermal Conductivity 0.23 W/m-°C ISO 8302
CTE, 23°C to 60°C, flow 8.E-05 1/°C ISO 11359-2
CTE, 23°C to 60°C, xflow 8.E-05 1/°C ISO 11359-2
Vicat Softening Temp, Rate B/120 121 °C ISO 306
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 105 °C ISO 75/Ae
PHYSICAL Value Unit Standard
Melt Flow Rate, 265°C/2.16kg 9 g/10 min ASTM D 1238
Density 1.18 g/cm³ ISO 1183
Melt Volume Rate, MVR at 265°C/2.16 kg 8 cm³/10 min ISO 1133
Melt Volume Rate, MVR at 300°C/1.2 kg 13 cm³/10 min ISO 1133
Source GMD, last updated:06/18/2001   　



Processing













Other related products we recommend:


For more information please download the datasheet
S-Plastic Xylex EXXY0009 Unreinforced, PC+Polyester Alloy With High Heat Properties For Extrusion Applications. 0  S-Plastics Xylex EXXY0009.pdf
