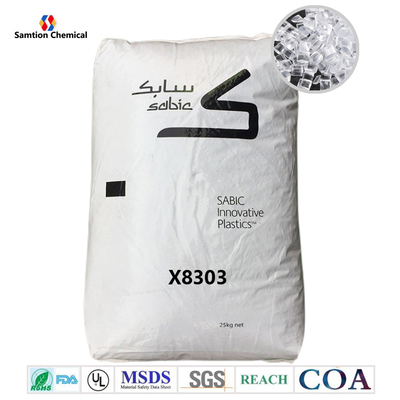

S-Plastics Xylex X8303 resin is Low processing Temperature, high flow with excellent impact
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 44 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 140 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1680 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1620 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 48 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 43 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 6 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 140 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1690 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 72 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1720 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 1000 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 65 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 98 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 92 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 80 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 60°C, flow | 9.2E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 9.8E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 100 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 100 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 90 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 265°C/2.16kg | 32 | g/10 min | ASTM D 1238 |
| Density | 1.2 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 30 | cm³/10 min | ISO 1133 |
| OPTICAL | Value | Unit | Standard |
| Light Transmission | 88 | % | ASTM D 1003 |
| Haze | 2 | % | ASTM D 1003 |
| Source GMD, last updated:12/04/2006 | |||
Processing
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 70 - 80 | °C |
| Drying Time | 3 - 5 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 240 - 270 | °C |
| Nozzle Temperature | 240 - 270 | °C |
| Front - Zone 3 Temperature | 240 - 270 | °C |
| Middle - Zone 2 Temperature | 235 - 265 | °C |
| Rear - Zone 1 Temperature | 235 - 255 | °C |
| Mold Temperature | 50 - 70 | °C |
| Screw Speed | 20 - 100 | rpm |
| Source GMD, last updated:12/04/2006 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Xylex X8303.pdf |
|
