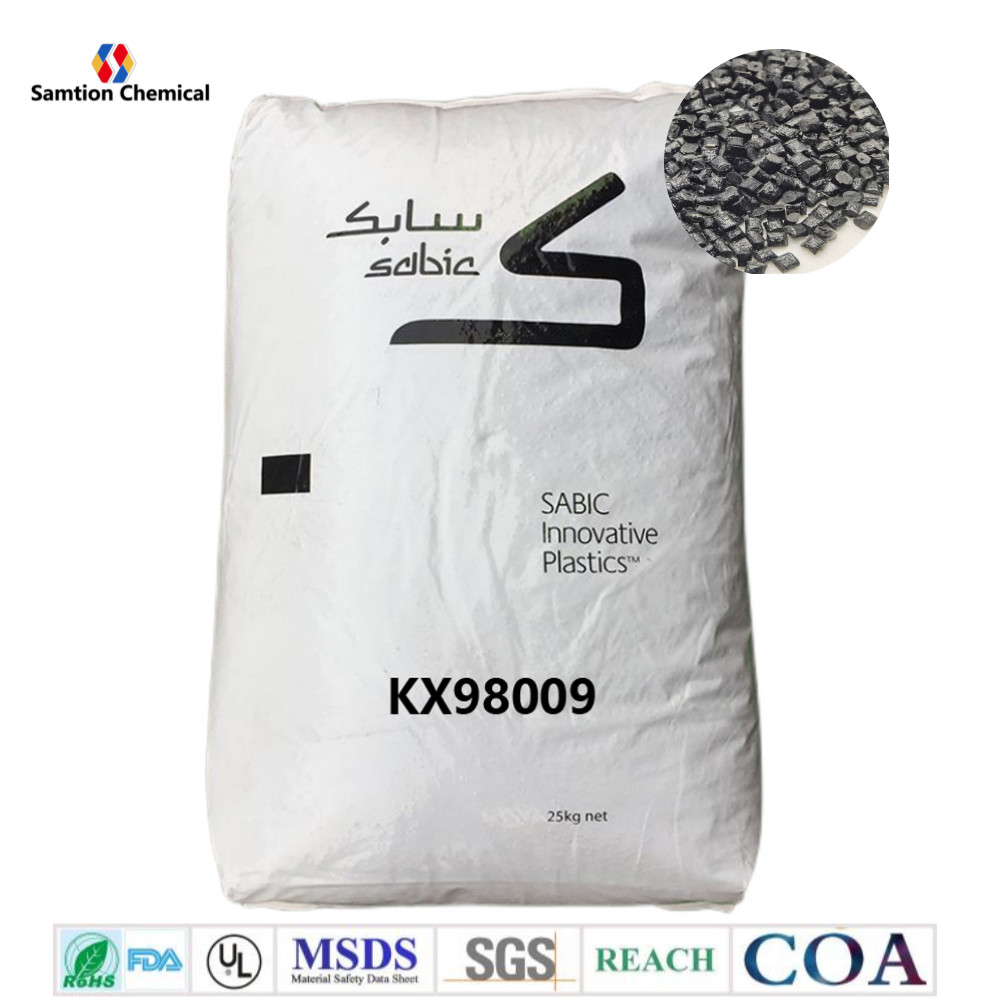

S-Plastics Faradex KX98009 resin is a compound based on Acetal Copolymer resin containing Stainless Steel Fiber, Glass Fiber. Added features include : EMI / RFI Shielding, Electrically Conductive.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 82 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 82 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 7900 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 116 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 103 | MPa | ISO 178 |
| Flexural Strain, break, 2 mm/min | 2.2 | % | ISO 178 |
| Flexural Modulus, 2 mm/min | 8200 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 159 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow | 0.4 | % | S-Plastics Method |
| Density | 1.68 | g/cm³ | ISO 1183 |
| Water Absorption, 23°C/24hrs | 0.54 | % | ISO 62-1 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+02 - 1.E+04 | Ohm | ASTM D 257 |
| Source GMD, last updated:07/15/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 200 - 215 | °C |
| Front - Zone 3 Temperature | 210 - 220 | °C |
| Middle - Zone 2 Temperature | 195 - 205 | °C |
| Rear - Zone 1 Temperature | 175 - 190 | °C |
| Mold Temperature | 80 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:07/15/2008 | ||
