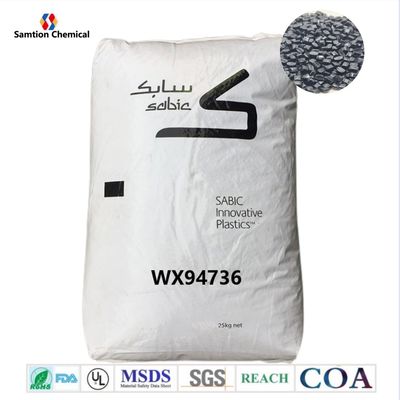

OEM S-Plastic LNP Faradex WX94736 Poly Resin Pellets Containing Stainless Steel

100KG
MOQ
*USD
Price
OEM S-Plastic LNP Faradex WX94736 Poly Resin Pellets Containing Stainless Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Stainless Steel: Containing
Highlight:

LNP Faradex WX94736

,

Poly LNP Faradex

,

Faradex poly resin pellets

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Faradex
Certification: COA/ICP Test/Rohs/MSDS
Model Number: WX94736
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Faradex  WX94736 resin is a compound based on Polybutylene Terephalate resin containing Stainless Steel.


Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yield 53 MPa ASTM D 638
Tensile Stress, break 53 MPa ASTM D 638
Tensile Strain, yield 2.7 % ASTM D 638
Tensile Strain, break 2.8 % ASTM D 638
Tensile Modulus, 50 mm/min 3440 MPa ASTM D 638
Flexural Stress 55 MPa ASTM D 790
Flexural Modulus 2750 MPa ASTM D 790
Tensile Stress, yield 53 MPa ISO 527
Tensile Stress, break 53 MPa ISO 527
Tensile Strain, yield 2.8 % ISO 527
Tensile Strain, break 2.9 % ISO 527
Tensile Modulus, 1 mm/min 3110 MPa ISO 527
Flexural Stress 83 MPa ISO 178
Flexural Modulus 3100 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 614 J/m ASTM D 4812
Izod Impact, notched, 23°C 58 J/m ASTM D 256
Instrumented Impact Energy @ peak, 23°C 6 J ASTM D 3763
Multiaxial Impact 1 J ISO 6603
Izod Impact, unnotched 80*10*4 +23°C 22 kJ/m² ISO 180/1U
Izod Impact, notched 80*10*4 +23°C 6 kJ/m² ISO 180/1A
THERMAL Value Unit Standard
HDT, 0.45 MPa, 3.2 mm, unannealed 143 °C ASTM D 648
HDT, 1.82 MPa, 3.2mm, unannealed 99 °C ASTM D 648
CTE, -40°C to 40°C, flow 8.28E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, xflow 6.84E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, flow 8.3E-05 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 6.9E-05 1/°C ISO 11359-2
HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm 147 °C ISO 75/Bf
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm 123 °C ISO 75/Af
PHYSICAL Value Unit Standard
Density 1.51 g/cm³ ASTM D 792
Moisture Absorption, 50% RH, 24 hrs 0.1 % ASTM D 570
Mold Shrinkage, flow, 24 hrs 0.8 - 1 % ASTM D 955
Mold Shrinkage, xflow, 24 hrs 1 - 1.2 % ASTM D 955
Mold Shrinkage, flow, 24 hrs 0.89 % ISO 294
Mold Shrinkage, xflow, 24 hrs 1.1 % ISO 294
Density 1.5 g/cm³ ISO 1183
Source GMD, last updated:09/24/2008

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 4 hrs
Maximum Moisture Content 0.05 %
Melt Temperature 240 - 265 °C
Front - Zone 3 Temperature 260 - 270 °C
Middle - Zone 2 Temperature 245 - 255 °C
Rear - Zone 1 Temperature 220 - 230 °C
Mold Temperature 80 - 100 °C
Back Pressure 0.2 - 0.3 MPa
Screw Speed 30 - 60 rpm
Source GMD, last updated:09/24/2008
