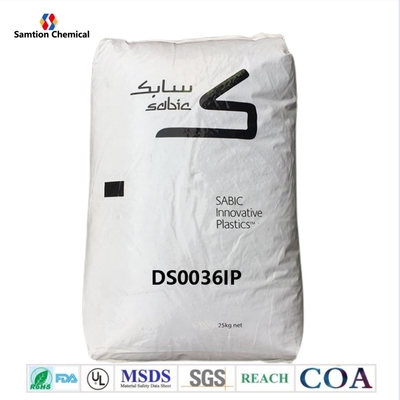

S-Plastics Faradex DS0036IP resin is a compound based on Polycarbonate resin containing Stainless Steel. Added features of this material
include: Electrically Conductive, EMI/RFI Shielding, High Impact, Non-Brominated & Non-Chlorinated Flame Retardant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 57 | MPa | ISO 527 |
| Tensile Stress, break | 55 | MPa | ISO 527 |
| Tensile Strain, yield | 3.8 | % | ISO 527 |
| Tensile Strain, break | 4 - 8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2800 | MPa | ISO 527 |
| Flexural Stress | 80 | MPa | ISO 178 |
| Flexural Modulus | 2600 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1788 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 122 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 85 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 11 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 6.7E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 5.6E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 136 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 125 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage, flow, 24 hrs | 0.4 - 0.7 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.5 | % | ISO 294 |
| Density | 1.29 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | - 1.E+04 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 1.E+02 - 1.E+03 | Ohm | ASTM D 257 |
| Shielding Effectivness @ 3mm | 40 - 55 | dB | S-Plastics Method |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 2.1 | mm | UL 94 by GE |
| Source GMD, last updated:04/23/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 305 - 325 | °C |
| Front - Zone 3 Temperature | 320 - 330 | °C |
| Middle - Zone 2 Temperature | 310 - 320 | °C |
| Rear - Zone 1 Temperature | 295 - 305 | °C |
| Mold Temperature | 95 - 120 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:04/23/2007 | ||
