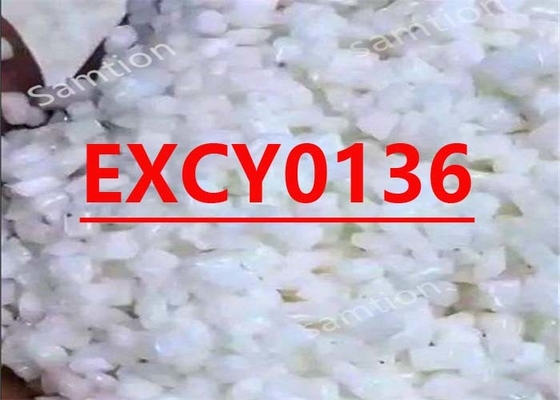

S-Plastics Cycoloy EXCY0136 resin is an injection moldable PC/ABS blend with non-brominated and non-chlorinated flame retardant systems. Thin wall FR together with excellent impact/flow balance makes it ideal for enclosures in medical and other applications.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 65 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 58 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 4.1 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 100 | % | ASTM D 638 |
Tensile Modulus, 50 mm/min | 2950 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 104 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 2750 | MPa | ASTM D 790 |
Tensile Stress, yield, 50 mm/min | 65 | MPa | ISO 527 |
Tensile Stress, break, 50 mm/min | 40 | MPa | ISO 527 |
Tensile Strain, yield, 50 mm/min | 4 | % | ISO 527 |
Tensile Strain, break, 50 mm/min | 90 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2950 | MPa | ISO 527 |
Flexural Stress, yield, 2 mm/min | 96 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2500 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 700 | J/m | ASTM D 256 |
Izod Impact, notched, -30°C | 175 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 65 | J | ASTM D 3763 |
Izod Impact, notched 80*10*4 +23°C | 25 | kJ/m² | ISO 180/1A |
Izod Impact, notched 80*10*4 -30°C | 10 | kJ/m² | ISO 180/1A |
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 22 | kJ/m² | ISO 179/1eA |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 3.2 mm, unannealed | 100 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 89 | °C | ASTM D 648 |
HDT, 0.45 MPa, 6.4 mm, unannealed | 99 | °C | ASTM D 648 |
Ball Pressure Test, 75°C +/- 2°C | Pass | - | IEC 60695-10-2 |
Vicat Softening Temp, Rate B/50 | 106 | °C | ISO 306 |
Vicat Softening Temp, Rate B/120 | 107 | °C | ISO 306 |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 93 | °C | ISO 75/Af |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.19 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
Melt Flow Rate, 260°C/2.16 kgf | 21 | g/10 min | ASTM D 1238 |
Density | 1.2 | g/cm³ | ISO 1183 |
Melt Volume Rate, MVR at 260°C/2.16 kg | 22 | cm³/10 min | ISO 1133 |
Melt Viscosity, 260°C, 1500 sec-1 | 200 | Pa-s | ISO 11443 |
ELECTRICAL | Value | Unit | Standard |
Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Compliant, 94V-1 Flame Class Rating (3)(4) | 0.6 | mm | UL 94 by GE |
UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.75 | mm | UL 94 by GE |
UL Compliant, 94-5VB Rating (3)(4) | 1.5 | mm | UL 94 by GE |
Glow Wire Flammability Index 960°C, passes at | 3 | mm | IEC 60695-2-12 |
Glow Wire Ignitability Temperature, 3.0 mm | 800 | °C | IEC 60695-2-13 |
Source GMD, last updated:11/09/2005 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 90 | °C |
Drying Time | 4 | hrs |
Maximum Moisture Content | 0.04 | % |
Melt Temperature | 270 - 300 | °C |
Nozzle Temperature | 265 - 300 | °C |
Front - Zone 3 Temperature | 265 - 300 | °C |
Middle - Zone 2 Temperature | 260 - 300 | °C |
Rear - Zone 1 Temperature | 260 - 300 | °C |
Hopper Temperature | 60 - 80 | °C |
Mold Temperature | 60 - 90 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 40 - 70 | rpm |
Shot to Cylinder Size | 40 - 80 | % |
Vent Depth | 0.038 - 0.076 | mm |
Source GMD, last updated:11/09/2005 |
