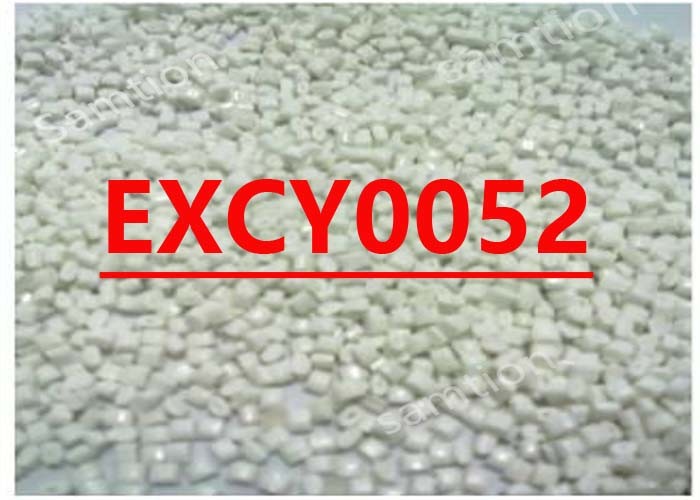

S-Plastics Cycoloy EXCY0052 resin is Improved Hydrolytic Stability Grade for Instrument Panels
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 52 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 54 | MPa | ASTM D 638 |
| Tensile Stress, yld, Type I, 5 mm/min | 52 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 54 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 125 | % | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 4.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 125 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2210 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 84 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2220 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 51 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 53 | MPa | ISO 527 |
| Tensile Stress, yield, 50 mm/min | 51 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 53 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 4.4 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 120 | % | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4.4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 120 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2280 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 81 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2160 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 700 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 500 | J/m | ASTM D 256 |
| Izod Impact, notched, -40°C | 400 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, -30 | 56 | J | ASTM D 3763 |
| Instrumented Impact Energy @ peak, -40°C | 59 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, 23°C | 48 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | n/a | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | n/a | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 64 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 51 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -40°C | 37 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 74 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 46 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 124 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 108 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 8.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.1E-04 | 1/°C | ASTM E 831 |
| Ball Pressure Test, 75°C +/- 2°C | n/a | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/50 | 124 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 126 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 128 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 104 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.13 | - | ASTM D 792 |
| Melt Flow Rate, 260°C/5.0 kgf | 13 | g/10 min | ASTM D 1238 |
| Density | 1.13 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 265°C/5.0 kg | 15 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:11/20/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 105 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 275 - 300 | °C |
| Nozzle Temperature | 275 - 300 | °C |
| Front - Zone 3 Temperature | 260 - 300 | °C |
| Middle - Zone 2 Temperature | 255 - 295 | °C |
| Rear - Zone 1 Temperature | 250 - 290 | °C |
| Mold Temperature | 60 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:11/20/2003 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics cycoloy EXCY0052.pdf |
|
