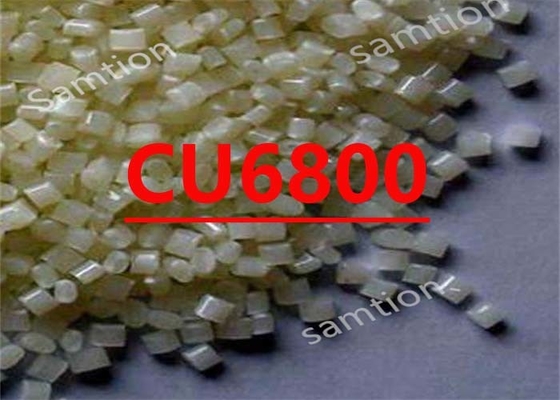

S-Plastics Cycoloy CU6800 resin is Non-chlorinated and non-brominated flame retardant PC/ABS featuring excellent flow properties. UL-94 V1 listed at 2.0mm intended for a wide range of different applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 59 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3.3 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 66 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2990 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 88 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2520 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 517 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 47 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 98 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 88 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 74 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 79 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.56E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.56E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/2.16 kgf | 23 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 260°C/5.0 kgf | 81 | g/10 min | ASTM D 1238 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 2 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2 | mm | UL 94 |
| Source GMD, last updated:05/09/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 80 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 230 - 265 | °C |
| Nozzle Temperature | 230 - 265 | °C |
| Front - Zone 3 Temperature | 230 - 265 | °C |
| Middle - Zone 2 Temperature | 225 - 260 | °C |
| Rear - Zone 1 Temperature | 220 - 250 | °C |
| Mold Temperature | 60 - 80 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:05/09/2001 | ||
