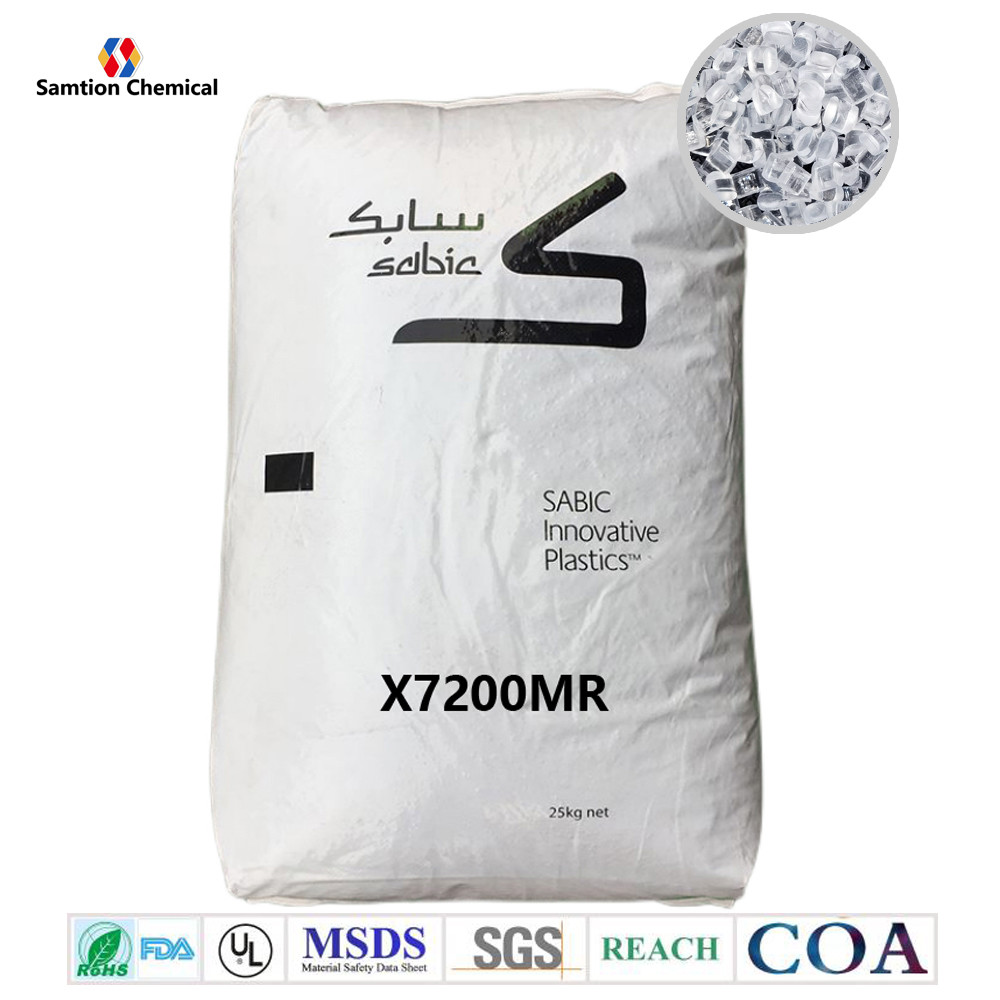

S-Plastics Xylex X7200MR resin is Mold Release version of X7200,General purpose, UV stabilised Xylex grade
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 55 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 56 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 135 | % | ASTM D 638 |
Tensile Modulus, 50 mm/min | 1880 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 84 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 1960 | MPa | ASTM D 790 |
Hardness, Shore D, 10S reading | 75 | - | ASTM D 2240 |
Tensile Stress, yield, 50 mm/min | 55 | MPa | ISO 527 |
Tensile Stress, break, 50 mm/min | 56 | MPa | ISO 527 |
Tensile Strain, yield, 5 mm/min | 5 | % | ISO 527 |
Tensile Strain, break, 50 mm/min | >150 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2000 | MPa | ISO 527 |
Flexural Stress, break, 2 mm/min | 75 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2000 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 900 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 95 | J | ASTM D 3763 |
Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
Izod Impact, notched 80*10*4 -10°C | 5 | kJ/m² | ISO 180/1A |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 115 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 3.2 mm, unannealed | 96 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 90 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 1.05E-04 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 1.05E-04 | 1/°C | ASTM E 831 |
Thermal Conductivity | 0.23 | W/m-°C | ISO 8302 |
CTE, 23°C to 60°C, flow | 8.E-05 | 1/°C | ISO 11359-2 |
CTE, 23°C to 60°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
Ball Pressure Test, approximate maximum | 105 | °C | IEC 60695-10-2 |
Vicat Softening Temp, Rate B/120 | 115 | °C | ISO 306 |
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 99 | °C | ISO 75/Ae |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.2 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
Mold Shrinkage, xflow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
Melt Flow Rate, 265°C/2.16kg | 12 | g/10 min | ASTM D 1238 |
Density | 1.18 | g/cm³ | ISO 1183 |
Melt Volume Rate, MVR at 265°C/2.16 kg | 12 | cm³/10 min | ISO 1133 |
OPTICAL | Value | Unit | Standard |
Light Transmission | 88 | % | ASTM D 1003 |
Haze | 1.1 | % | ASTM D 1003 |
Refractive Index | 1.557 | - | ISO 489 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | >1.E+15 | Ohm-cm | ASTM D 257 |
Surface Resistivity | >1.E+15 | Ohm | ASTM D 257 |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-2 Flame Class Rating (3) | 3 | mm | UL 94 |
Glow Wire Flammability Index 750°C, passes at | 1 | mm | IEC 60695-2-12 |
Source GMD, last updated:09/29/2005 |
Processing
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 80 - 95 | °C |
Drying Time | 3 - 5 | hrs |
Drying Time (Cumulative) | 8 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 250 - 270 | °C |
Nozzle Temperature | 250 - 270 | °C |
Front - Zone 3 Temperature | 250 - 270 | °C |
Middle - Zone 2 Temperature | 245 - 265 | °C |
Rear - Zone 1 Temperature | 240 - 250 | °C |
Mold Temperature | 45 - 60 | °C |
Back Pressure | 0.2 - 0.5 | MPa |
Screw Speed | 20 - 100 | rpm |
Shot to Cylinder Size | 40 - 80 | % |
Vent Depth | 0.013 - 0.02 | mm |
Source GMD, last updated:09/29/2005 |
