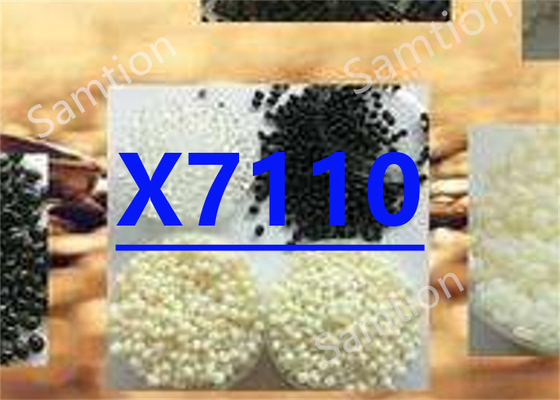

S-Plastics Xylex X7110 resin is PC+POLYESTER, Heat Stabilized, Low Temperature Ductile, Translucent, UV-Stabilized, Weatherable, Unreinforced and Chemical resistant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 45 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 150 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 1630 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1680 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 43 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 46 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 5.3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | >100 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1700 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 57 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1750 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 801 | J/m | ASTM D 256 |
| Izod Impact, notched, -20°C | 641 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 416 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 81 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 50 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 30 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 13 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 71 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 106 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 90 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 85 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.1E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.1E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 8.3E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 9.2E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 103 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 106 | °C | ISO 306 |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 91 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 265°C/2.16kg | 9 | g/10 min | ASTM D 1238 |
| Melt Flow Rate, 300°C/1.2 kgf | 10.5 | g/10 min | ASTM D 1238 |
| Density | 1.17 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.38 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.13 | % | ISO 62 |
| Melt Volume Rate, MVR at 265°C/2.16 kg | 8 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 10 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:02/20/2006 | |||
Processing
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 65 - 80 | °C |
| Drying Time | 3 - 5 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 270 | °C |
| Nozzle Temperature | 250 - 270 | °C |
| Front - Zone 3 Temperature | 250 - 270 | °C |
| Middle - Zone 2 Temperature | 245 - 270 | °C |
| Rear - Zone 1 Temperature | 245 - 260 | °C |
| Mold Temperature | 45 - 60 | °C |
| Back Pressure | 0.1 - 0.5 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.013 - 0.02 | mm |
| Source GMD, last updated:02/20/2006 | ||
