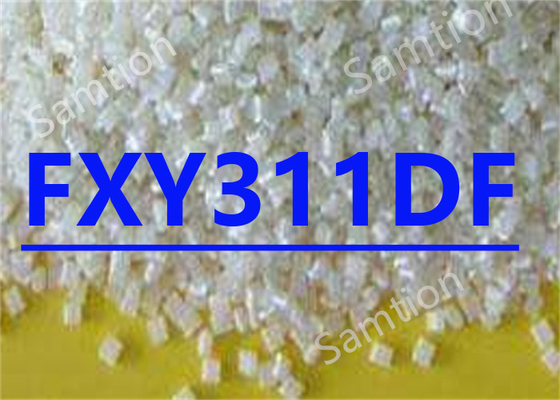

S-Plastic Xylex FXY311DF in Diffusion Effects. Color package may affect performance.

100KG
MOQ
*USD
Price
S-Plastic Xylex FXY311DF in Diffusion Effects. Color package may affect performance.
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 265°C/2.16 Kg: 9
In Diffusion Effects: Yes
Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Xylex
Certification: COA/ICP Test/Rohs/MSDS
Model Number: FXY311DF
Payment & Shipping Terms
Packaging Details: 25KG/bag
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics XylexFXY311DF resin is Xylex in Diffusion Effects. Color package may affect performance.

Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 46 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 49 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 5.4 % ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 150 % ASTM D 638
Tensile Modulus, 50 mm/min 1570 MPa ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 71 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 1810 MPa ASTM D 790
Tensile Stress, yield, 50 mm/min 45 MPa ISO 527
Tensile Stress, break, 50 mm/min 47 MPa ISO 527
Tensile Strain, yield, 50 mm/min 4.8 % ISO 527
Tensile Strain, break, 50 mm/min 146 % ISO 527
Tensile Modulus, 1 mm/min 1720 MPa ISO 527
Flexural Stress, yield, 2 mm/min 67 MPa ISO 178
Flexural Modulus, 2 mm/min 1560 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 724 J/m ASTM D 256
Izod Impact, notched, -30°C 320 J/m ASTM D 256
Instrumented Impact Total Energy, 23°C 43 J ASTM D 3763
Izod Impact, notched 80*10*4 +23°C 53 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 17 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 62 kJ/m² ISO 179/1eA
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 102 °C ASTM D 1525
HDT, 0.45 MPa, 3.2 mm, unannealed 98 °C ASTM D 648
HDT, 1.82 MPa, 3.2mm, unannealed 83 °C ASTM D 648
CTE, -40°C to 40°C, flow 9.2E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, xflow 9.3E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, flow 9.2E-05 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 9.1E-05 1/°C ISO 11359-2
Vicat Softening Temp, Rate B/50 102 °C ISO 306
Vicat Softening Temp, Rate B/120 103 °C ISO 306
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 82 °C ISO 75/Ae
PHYSICAL Value Unit Standard
Specific Gravity 1.15 - ASTM D 792
Mold Shrinkage, flow, 3.2 mm 0.5 - 0.7 % S-Plastics Method
Mold Shrinkage, xflow, 3.2 mm 0.5 - 0.7 % S-Plastics Method
Melt Flow Rate, 265°C/2.16kg 8 g/10 min ASTM D 1238
Density 1.15 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.17 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.6 % ISO 62
Melt Volume Rate, MVR at 265°C/2.16 kg 9 cm³/10 min ISO 1133
Source GMD, last updated:01/22/2006



Processing

Parameter
Injection Molding Value Unit
Drying Temperature 65 - 80 °C
Drying Time 3 - 5 hrs
Drying Time (Cumulative) 8 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 250 - 270 °C
Nozzle Temperature 250 - 270 °C
Front - Zone 3 Temperature 250 - 270 °C
Middle - Zone 2 Temperature 245 - 270 °C
Rear - Zone 1 Temperature 245 - 260 °C
Mold Temperature 45 - 60 °C
Back Pressure 0.1 - 0.5 MPa
Screw Speed 20 - 100 rpm
Shot to Cylinder Size 40 - 80 %
Vent Depth 0.013 - 0.02 mm
Source GMD, last updated:01/22/2006
