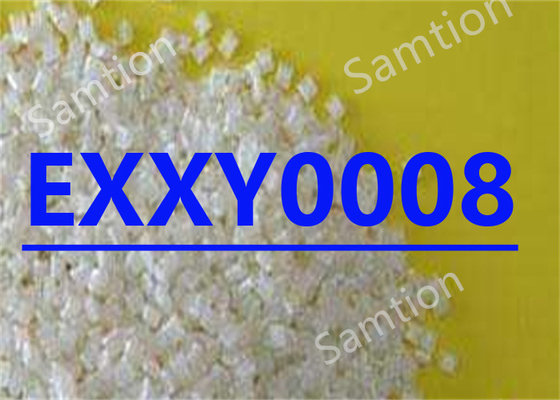

S-Plastics Xylex EXXY0008 resin is Opaque PC+polyester alloy. High flow, chemical resistant/good mechanical properties. UV-stabilized. Exc
weatherability.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 39 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 39 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 150 | % | ASTM D 638 |
Tensile Modulus, 50 mm/min | 1310 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 52 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 1440 | MPa | ASTM D 790 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 854 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 85 | J | ASTM D 3763 |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 60 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 57 | °C | ASTM D 648 |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.1 | - | ASTM D 792 |
Melt Flow Rate, 266°C/5.0 kgf | 32 | g/10 min | ASTM D 1238 |
Source GMD, last updated:03/01/2002 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 30 - 50 | °C |
Drying Time | 3 - 5 | hrs |
Drying Time (Cumulative) | 7 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 230 - 265 | °C |
Nozzle Temperature | 230 - 265 | °C |
Front - Zone 3 Temperature | 230 - 265 | °C |
Middle - Zone 2 Temperature | 240 - 260 | °C |
Rear - Zone 1 Temperature | 240 - 250 | °C |
Mold Temperature | 25 - 55 | °C |
Back Pressure | 0.2 - 0.5 | MPa |
Screw Speed | 20 - 100 | rpm |
Shot to Cylinder Size | 40 - 80 | % |
Vent Depth | 0.013 - 0.02 | mm |
Source GMD, last updated:03/01/2002 |
