Sabic Cycoloy resin is polycarbonate and acrylonitrile-butadiene-styrene copolymers and mixtures, which are a combination of polycarbonate (Polycarbonate) and acrylonitrile-butadiene-styrene (ABS) plastic that combines the superior properties of both materials.
Sabic Cycoloy alloy plastic has very good weather resistance. In the automotive industry, the high temperature resistance level, aging resistance and electroplating level required by parts and small ornaments are diversified and the processing of various shapes is convenient for molding. Flame retardant grade: because the fire resistance of PC is good, it fully complements the fire resistance of ABS. The fire resistance of PC / ABS is also very good. After adding flame retardant, it can reach the flame retardant V0 and 5V standards. Flame retardant grades are generally divided into those that meet V0, V1, V2 and 5V non ignition standards. It is very simple to test the flame retardant standards. Use a lighter to light the products to be tested to see their burning time. All flame retardant grades have obtained UL certification. The test standard unit is UL94. Among the flame retardant materials, there are halogen and phosphorus flame retardant grades: there are both non halogen PC / ABS general grades and high heat-resistant grades. Some common flame retardant materials contain halogen and bromine. Those with high environmental protection requirements need halogen-free or low halogen materials to be high environmental protection grades. Mineral filled reinforcing materials: including common glass fiber, calcium carbonate and talc mineral fillers.
Features:
1. Good comprehensive performance, high impact strength, chemical stability and good electrical performance.
2, good weldability, made into two-color plastic parts, and can be chrome-plated and painted.
3, has high impact, high heat, flame retardant, enhanced, transparent and other levels.
4, the fluidity is a little worse than HIPS, better than PMMA, PC, etc., and good flexibility.
5. Excellent balance of mechanical properties.

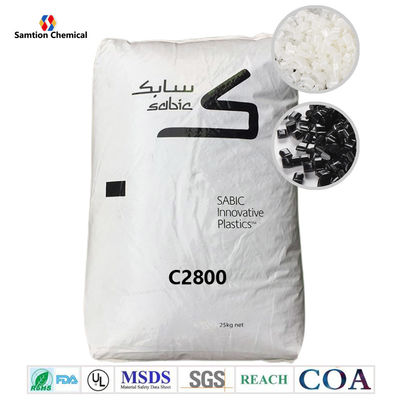

Sabic Cycoloy c2800 (PC/ABS) resin is a standard grade resin that can be injection molded,with non-chlorinated, non-brominated flame retardant(UL V0 & 5VB flame rating). C2800 is balanced flow and impact properties for various applications including business equipment, monitors, enclosures, among others.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 58 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 50 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2680 | MPa | ASTM D 638 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 96 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 2680 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 120 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 427 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 58 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 90 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 73 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 80 | °C | ASTM D 648 |
| CTE, -40°C to 60°C, flow | 7.2E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 60°C, xflow | 7.2E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.2 | W/m-°C | ASTM C 177 |
| Relative Temp Index, Elec | 80 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 70 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 80 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.17 | - | ASTM D 792 |
| Specific Gravity, color | 1.18 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.1 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 0.4 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.6 | % | SABIC Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 - 0.6 | % | SABIC Method |
| Melt Flow Rate, 260°C/2.16 kgf | 16 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | >1.E+14 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 3.2 mm | 17.9 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 3 | - | ASTM D 150 |
| Relative Permittivity, 100 Hz | 3 | - | ASTM D 150 |
| Dissipation Factor, 50/60 Hz | 0.0048 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 3 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-2 Flame Class Rating (3) | 0.88 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2.31 | mm | UL 94 |
| CSA (See File for complete listing) | LS88480 | File No. | CSA LISTED |
| Oxygen Index (LOI) | 35 | % | ASTM D 2863 |
| Source GMD, last updated:01/05/2000 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 80 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 230 - 275 | °C |
| Nozzle Temperature | 230 - 275 | °C |
| Front - Zone 3 Temperature | 225 - 275 | °C |
| Middle - Zone 2 Temperature | 215 - 260 | °C |
| Rear - Zone 1 Temperature | 210 - 255 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 30 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:01/05/2000 | ||
