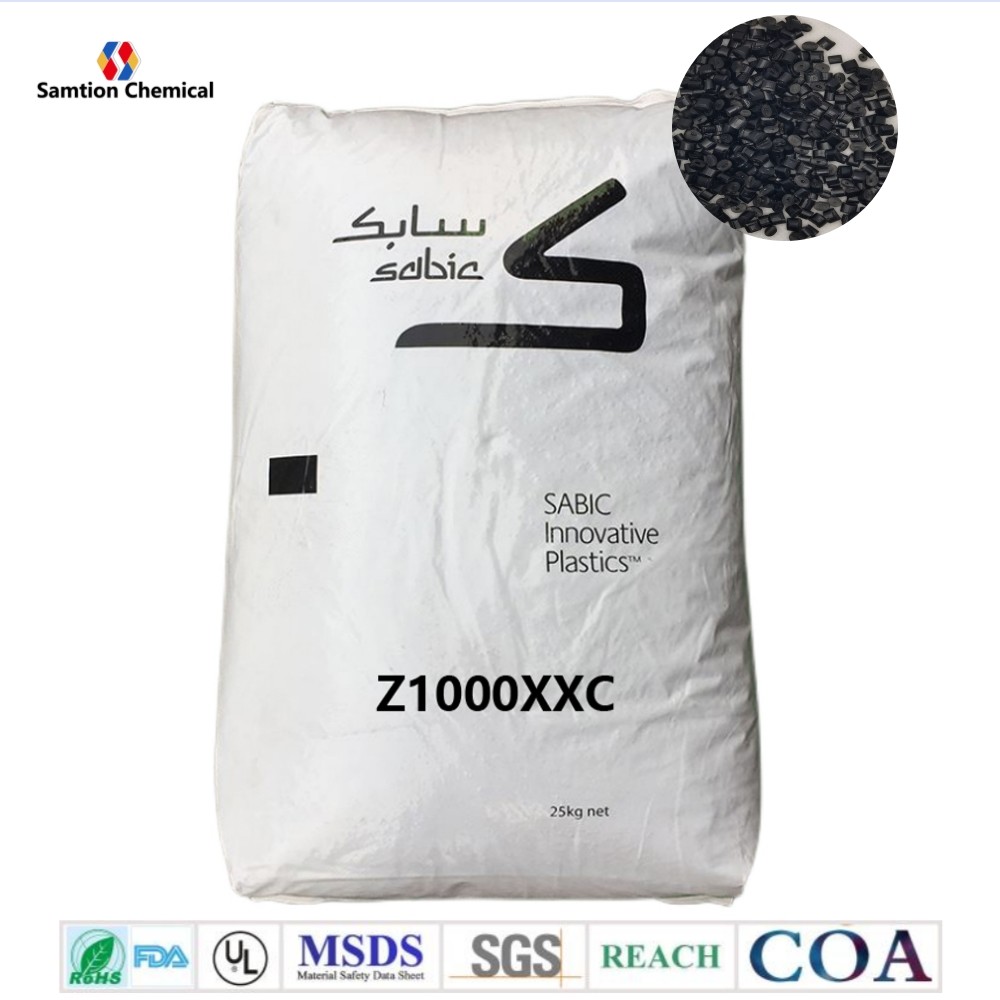

S-Plastics Verton Z1000XXC resin is High Impact PPO Blend compound.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 49 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | >25 | % | ISO 527 |
| Flexural Stress, break, 2 mm/min | 63 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1700 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | >137 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 56 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 89 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 1.6 - 1.8 | % | S-Plastics Method |
| Density | 1.09 | g/cm³ | ISO 1183 |
| Source GMD, last updated:10/10/2006 | |||
|
For more information please download the datasheet |
|
 |
S-Plastics Verton Z1000XXC.pdf |
|
