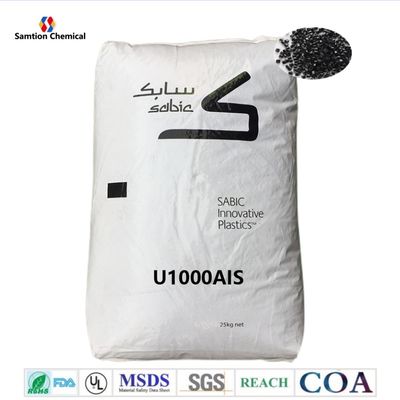

S-Plastics Verton U1000AIS resin is a compound based on Polyphthalamide resin. Added features of this material include: High Impact, Heat Stabilized.
Also known as: U-1000 A HI HS
Product Reorder Name: U1000AIS
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yield | 59 | MPa | ASTM D 638 |
Tensile Stress, break | 58 | MPa | ASTM D 638 |
Tensile Strain, yield | 5 | % | ASTM D 638 |
Tensile Strain, break | 17 | % | ASTM D 638 |
Tensile Modulus, 50 mm/min | 2750 | MPa | ASTM D 638 |
Flexural Modulus | 2060 | MPa | ASTM D 790 |
Tensile Stress, yield | 56 | MPa | ISO 527 |
Tensile Stress, break | 56 | MPa | ISO 527 |
Tensile Strain, yield | 7.3 | % | ISO 527 |
Tensile Strain, break | 12.6 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2450 | MPa | ISO 527 |
Flexural Stress | 79 | MPa | ISO 178 |
Flexural Modulus | 2000 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, unnotched, 23°C | 1922 | J/m | ASTM D 4812 |
Izod Impact, notched, 23°C | 587 | J/m | ASTM D 256 |
Instrumented Impact Energy @ peak, 23°C | 6 | J | ASTM D 3763 |
Multiaxial Impact | 52 | J | ISO 6603 |
Izod Impact, unnotched 80*10*4 +23°C | 172 | kJ/m² | ISO 180/1U |
Izod Impact, notched 80*10*4 +23°C | 44 | kJ/m² | ISO 180/1A |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 157 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 108 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 7.92E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 8.1E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, flow | 7.9E-05 | 1/°C | ISO 11359-2 |
CTE, -40°C to 40°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 153 | °C | ISO 75/Bf |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 108 | °C | ISO 75/Af |
PHYSICAL | Value | Unit | Standard |
Density | 1.12 | g/cm³ | ASTM D 792 |
Moisture Absorption, 50% RH, 24 hrs | 0.2 | % | ASTM D 570 |
Mold Shrinkage, flow, 24 hrs | 1.4 | % | ASTM D 955 |
Mold Shrinkage, xflow, 24 hrs | 1.7 | % | ASTM D 955 |
Mold Shrinkage, flow, 24 hrs | 1.4 | % | ISO 294 |
Mold Shrinkage, xflow, 24 hrs | 1.7 | % | ISO 294 |
Density | 1.11 | g/cm³ | ISO 1183 |
Source GMD, last updated:09/24/2008 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 120 | °C |
Drying Time | 4 | hrs |
Maximum Moisture Content | 0.15 | % |
Melt Temperature | 315 - 330 | °C |
Front - Zone 3 Temperature | 325 - 340 | °C |
Middle - Zone 2 Temperature | 315 - 325 | °C |
Rear - Zone 1 Temperature | 310 - 320 | °C |
Mold Temperature | 150 - 170 | °C |
Back Pressure | 0.2 - 0.3 | MPa |
Screw Speed | 30 - 60 | rpm |
Source GMD, last updated:09/24/2008 |
