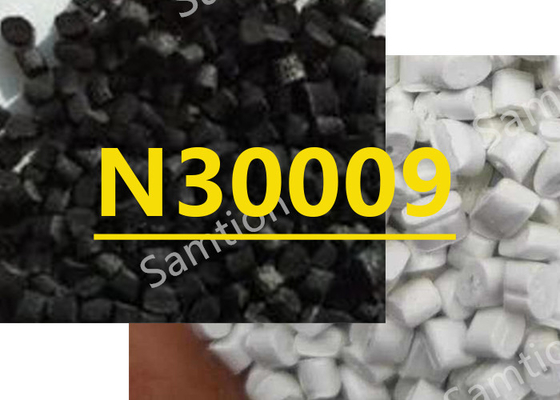

S-Plastics Verton N30009 resin is a compound based on PC+ABS Blend resin containing Flame Retardant, Anti-Static. Added features of this
material include: Antistat, Flame Retardant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 55 | MPa | ASTM D 638 |
| Tensile Stress, break | 49 | MPa | ASTM D 638 |
| Tensile Strain, yield | 5 | % | ASTM D 638 |
| Tensile Strain, break | 100 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2150 | MPa | ASTM D 638 |
| Flexural Stress | 6 | MPa | ASTM D 790 |
| Flexural Modulus | 2150 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 640 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 38 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 100 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.26 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.53 - 0.65 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.53 - 0.65 | % | ASTM D 955 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+11 - 1.E+00 | Ohm | ASTM D 257 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.5 | mm | UL 94 by GE |
| Source GMD, last updated:10/01/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 200 - 230 | °C |
| Front - Zone 3 Temperature | 220 - 230 | °C |
| Middle - Zone 2 Temperature | 210 - 220 | °C |
| Rear - Zone 1 Temperature | 200 - 210 | °C |
| Mold Temperature | 40 - 55 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/01/2004 | ||
)
