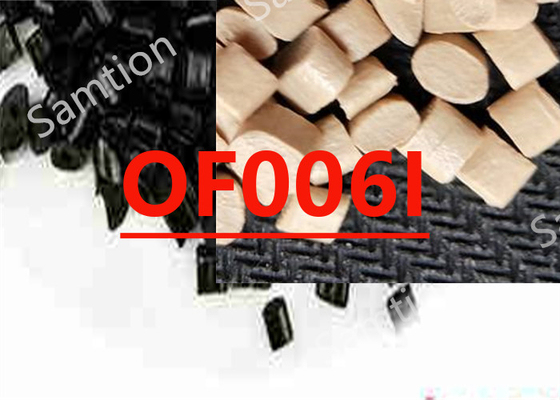

S-Plastics Verton OF006I resin is a compound based on PPS - Linear resin containing Glass Fiber. Added features of this material include:
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 143 | MPa | ASTM D 638 |
| Tensile Strain, break | 2.4 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10820 | MPa | ASTM D 638 |
| Flexural Stress | 207 | MPa | ASTM D 790 |
| Flexural Modulus | 9790 | MPa | ASTM D 790 |
| Tensile Stress, break | 139 | MPa | ISO 527 |
| Tensile Strain, break | 2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9820 | MPa | ISO 527 |
| Flexural Stress | 212 | MPa | ISO 178 |
| Flexural Modulus | 10060 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 779 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 170 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 13 | J | ASTM D 3763 |
| Multiaxial Impact | 4 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 50 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 16 | kJ/m² | ISO 180/1A |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.486 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.04 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.2 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.7 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.23 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.67 | % | ISO 294 |
| Density | 1.48 | g/cm³ | ISO 1183 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 315 - 320 | °C |
| Front - Zone 3 Temperature | 330 - 345 | °C |
| Middle - Zone 2 Temperature | 320 - 330 | °C |
| Rear - Zone 1 Temperature | 305 - 315 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Verton OF006I.pdf |
|
