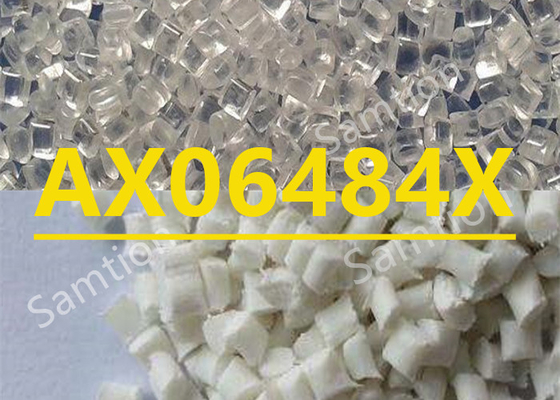

S-Plastics Verton AX06484X resin is a compound based on ABS resin containing mineral filler. Characteristics of this grade is it is extrudeable and
static dissipative.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 28 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 25 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.6 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 3120 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 51 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 50 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2750 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 26 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 26 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2.1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2540 | MPa | ISO 527 |
| Flexural Stress | 45 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2590 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 441 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 44 | J/m | ASTM D 256 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 3 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 25 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 97 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 76 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 9.5E-05 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 6.2E-05 | 1/°C | ASTM D 696 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 93 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 76 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.39 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 3.8 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.4 - 0.6 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.5 - 0.7 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 5.6 | % | ISO 62 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 7.E+00 - 9.E+00 | Ohm | ASTM D 257 |
| Source GMD, last updated:07/28/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 70 - 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 - 0.1 | % |
| Melt Temperature | 200 - 210 | °C |
| Front - Zone 3 Temperature | 205 - 215 | °C |
| Middle - Zone 2 Temperature | 195 - 205 | °C |
| Rear - Zone 1 Temperature | 180 - 195 | °C |
| Mold Temperature | 10 - 50 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:07/28/2008 | ||
