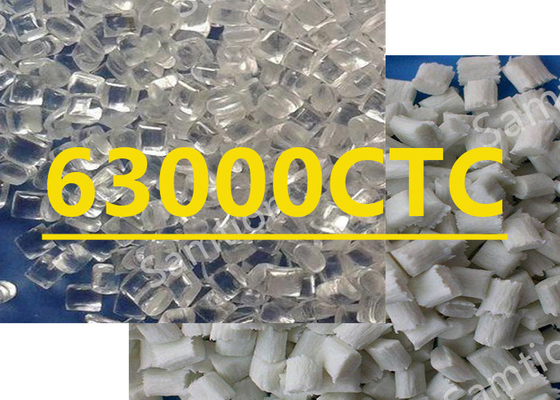

S-Plastics Verton 63000CTC resin is A permanent antistatic PC-Alloy compound that features transparency and superior cleanliness for advanced semiconductor packaging applications
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 35 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 0 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 10 mm/min | 0 | % | S-Plastics - Japan Method |
| Tensile Strain, brk, Type I, 10 mm/min | 200 | % | S-Plastics - Japan Method |
| Tensile Modulus, 50 mm/min | 1170 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 52 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1170 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 34 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 0 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 0 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 140 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1190 | MPa | ISO 527 |
| Flexural Modulus, 2 mm/min | 1150 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 0 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 580 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 0 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 0 | kJ/m² | ISO 180/1A |
| Charpy Impact, notched, 23°C | 69 | kJ/m² | ISO 179/2C |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 84 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 75 | °C | ASTM D 648 |
| CTE, 23°C to 60°C, flow | 1.2E-04 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 1.4E-04 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 0 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.16 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0 | % | ASTM D 570 |
| Mold Shrinkage, flow | 0.6 | % | S-Plastics Method |
| Mold Shrinkage, xflow | 0.6 | % | S-Plastics Method |
| Mold Shrinkage, flow, 24 hrs | 0 - 0 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0 - 0 | % | ASTM D 955 |
| Density | 0 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.7 | % | ISO 62 |
| OPTICAL | Value | Unit | Standard |
| Light Transmission | 77 | % | ASTM D 1003 |
| Haze | 25 | % | ASTM D 1003 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 8.E+09 - 3.E+11 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 9.E+09 - 4.E+11 | Ohm | ASTM D 257 |
| Static Decay, 5000V to <50V | 2 | < seconds | FTMS101B |
| Surface Resistivity, ROA | 0.E+00 - 0.E+00 | Ohm | IEC 60093 |
| Source GMD, last updated:08/21/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 95 | °C |
| Drying Time | 6 - 8 | hrs |
| Melt Temperature | 230 - 250 | °C |
| Nozzle Temperature | 230 - 250 | °C |
| Front - Zone 3 Temperature | 230 - 250 | °C |
| Middle - Zone 2 Temperature | 225 - 240 | °C |
| Rear - Zone 1 Temperature | 220 - 230 | °C |
| Mold Temperature | 40 - 50 | °C |
| Source GMD, last updated:08/21/2007 | ||
