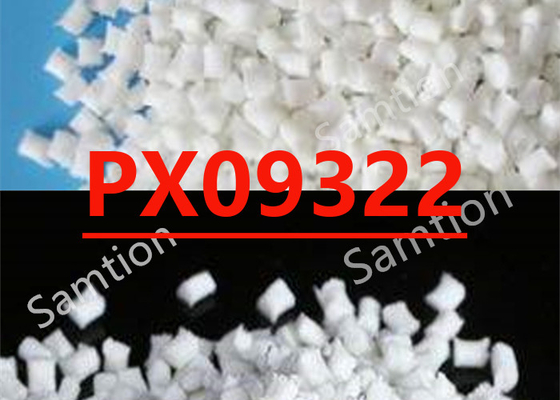

S-Plastics Verton PX09322 resin is White colored thermally conductive mineral filled PA6 FR compound, with through-plane and in-plane thermal conductivity of 1.5W/(m*K and 6.0 W/(m*K) respectively, conforming to ASTM E 1461 test standard.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 51 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 0.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10420 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 80 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 81 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 10960 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 131 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 22 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 182 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.37E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 3.67E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.52 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow (5) | 0.58 | % | S-Plastics Method |
| Mold Shrinkage, xflow (5) | 0.53 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 8.1E+14 | Ohm | ASTM D 257 |
| Comparative Tracking Index (UL) {PLC} | 0 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.2 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Source GMD, last updated:2010/09/13 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 3 - 4 | hrs |
| Melt Temperature | 250 - 280 | °C |
| Nozzle Temperature | 250 - 280 | °C |
| Front - Zone 3 Temperature | 250 - 280 | °C |
| Middle - Zone 2 Temperature | 240 - 280 | °C |
| Rear - Zone 1 Temperature | 230 - 270 | °C |
| Mold Temperature | 80 - 100 | °C |
| Back Pressure | 3 - 9 | MPa |
| Screw Speed | 30 - 150 | rpm |
| Source GMD, last updated:2010/09/13 | ||
