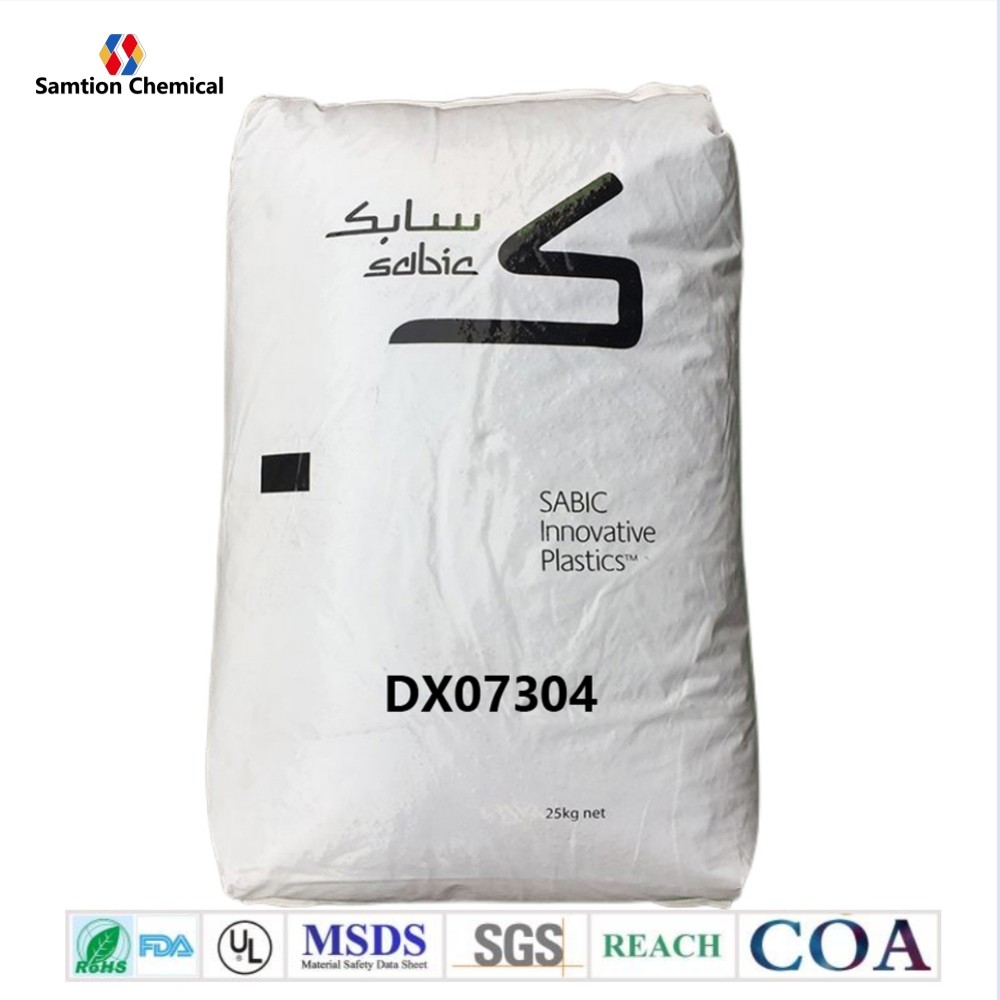

S-Plastics Faradex DX07304 resin is CF filled grade with EMI shielding
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 0 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 133 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 0 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.1 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 23190 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 210 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 207 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 19600 | MPa | ASTM D 790 |
| Tensile Modulus, 1 mm/min | 23380 | MPa | ISO 527 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 296 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 15 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 72 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 72 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.4 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.17 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.21 | % | ASTM D 955 |
| Density | 1.4 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 300°C/2.16 kg | 11 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 7.3E+03 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 4.38E+05 | Ohm | ASTM D 257 |
| Volume Resistivity | 5.E+04 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | 1.E+04 | Ohm | IEC 60093 |
| Shielding Effectivness @ 3mm | 30 | dB | S-Plastics Method |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1 | mm | UL 94 |
| Source GMD, last updated:06/20/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 85 - 90 | °C |
| Drying Time | 3 - 4 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 270 - 300 | °C |
| Nozzle Temperature | 265 - 300 | °C |
| Front - Zone 3 Temperature | 265 - 300 | °C |
| Middle - Zone 2 Temperature | 260 - 300 | °C |
| Rear - Zone 1 Temperature | 260 - 300 | °C |
| Mold Temperature | 60 - 90 | °C |
| Back Pressure | 4 | MPa |
| Screw Speed | 30 - 100 | rpm |
| Source GMD, last updated:06/20/2007 | ||
|
For more information please download the datesheet |
|
 |
S-Plastics Faradex DX07304.pdf |
|
