S-Plastics Cycolac FR15U resin is Flame retardant ABS with excellent indoor UV properties and excellent processing. UL94 V-0/5VA rated. Elevated UL RTI rating (90-85-90) for all colors except for blue and green colors (60-60-60).
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 37 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 30 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 17 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2060 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 67 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 41 | MPa | ISO 527 |
| Tensile Strain, break, 50 mm/min | 21.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2210 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 63 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2260 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 213 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 28 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 12 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 93 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 86 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 75 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 9.18E-05 | 1/°C | ASTM E 831 |
| Vicat Softening Temp, Rate B/50 | 92 | °C | ISO 306 |
| Relative Temp Index, Elec | 90 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 85 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 90 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 230°C/3.8 kgf | 3.3 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 200°C, 1000 sec-1 | 3200 | poise | ASTM D 3825 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Melt Flow Rate, 220°C/5.0 kg | 7 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 40 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Arc Resistance, Tungsten {PLC} | 7 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| Volume Resistivity | >1.E+14 | Ohm-cm | IEC 60093 |
| Dielectric Strength, in oil, 3.2 mm | 20 | kV/mm | IEC 60243-1 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.79 | mm | UL 94 |
| Source GMD, last updated:12/08/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 205 - 230 | °C |
| Nozzle Temperature | 205 - 230 | °C |
| Front - Zone 3 Temperature | 205 - 220 | °C |
| Middle - Zone 2 Temperature | 200 - 210 | °C |
| Rear - Zone 1 Temperature | 170 - 180 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:12/08/2005 | ||
Recommended related models (Some of them are in-stock)
Please contact us for specific quotations and more details.
| Brand | Series | Model |
| S-Plastics | Cycolac | 700-314 |
| 763-NATURAL | ||
| 920-555 | ||
| A30009-BK8115 | ||
| AX88130-NC | ||
| FR15U-BK4051 | ||
| FR15U-NA1000 | ||
| FR15U-WH6D107 | ||
| FR530-NP | ||
| GP-22-NATURAL | ||
| GP2300-NP | ||
| HI121H-9001 | ||
| HI121H-NP | ||
| HMG47MD-1H1000 | ||
| MG37EPX-NA1000 | ||
| MG47-10000 | ||
| MG47F-NA1000 | ||
| MG47F-NA1001 | ||
| MG47-NA1000 | ||
| MG47-NA1001 | ||
| PA-709S-NATURAL | ||
| PA-718-BLACK | ||
| PA-747-NATURAL | ||
| PA-747-NATURE | ||
| PA-757-NATURAL | ||
| PA-758-NATURAL | ||
| PA-765A-J12512B6 | ||
| PA-765A-NATURAL | ||
| PA-765-NATURAL | ||
| PA-777D-NATURAL |

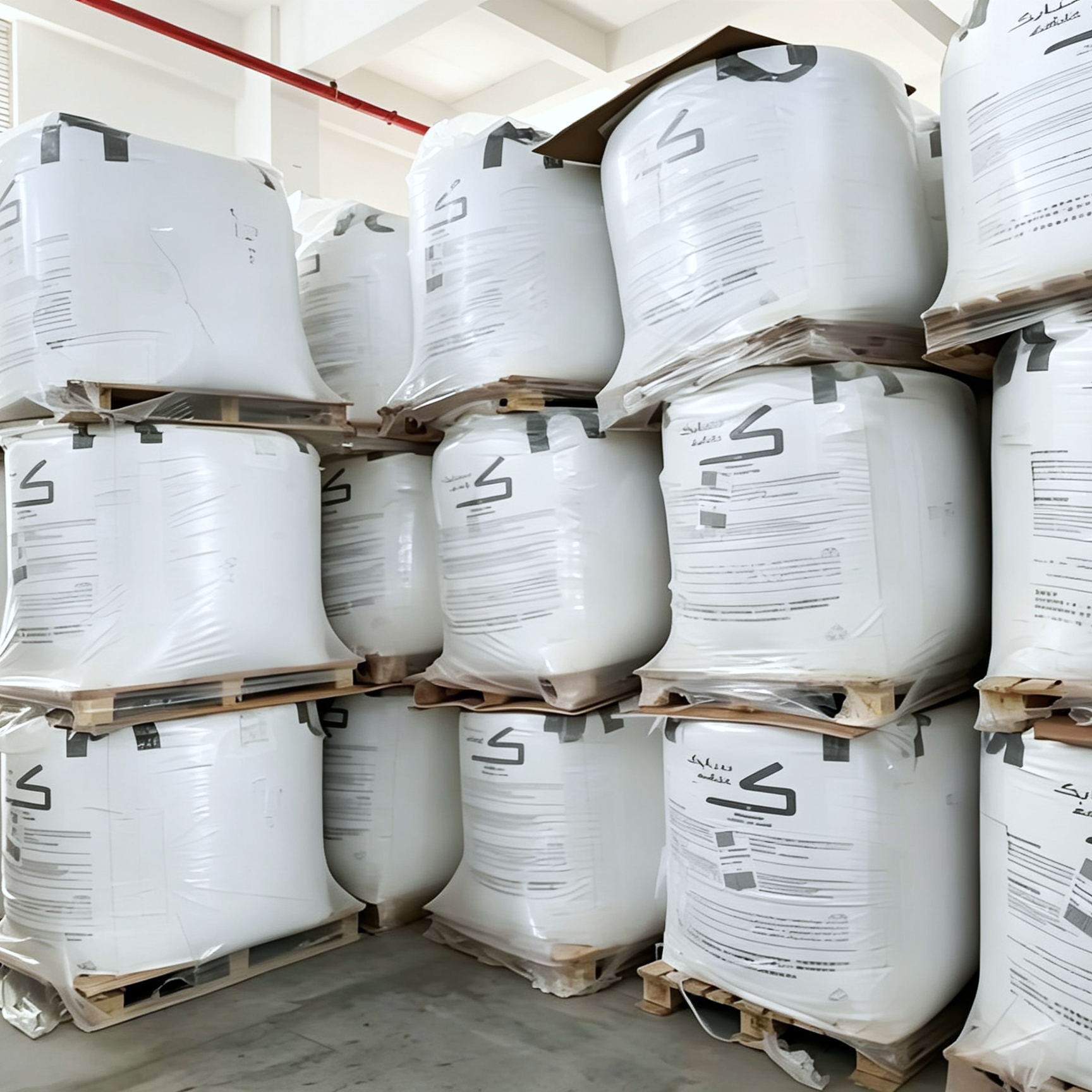

With a strong sales network and strength, we have warehousing services in Guangzhou, Dongguan, Shenzhen free trade zone, Hong Kong and other four places (conventional product inventory exceeds 1000 tons). We can provide customers with rapid response, professional service and excellent products!
|
