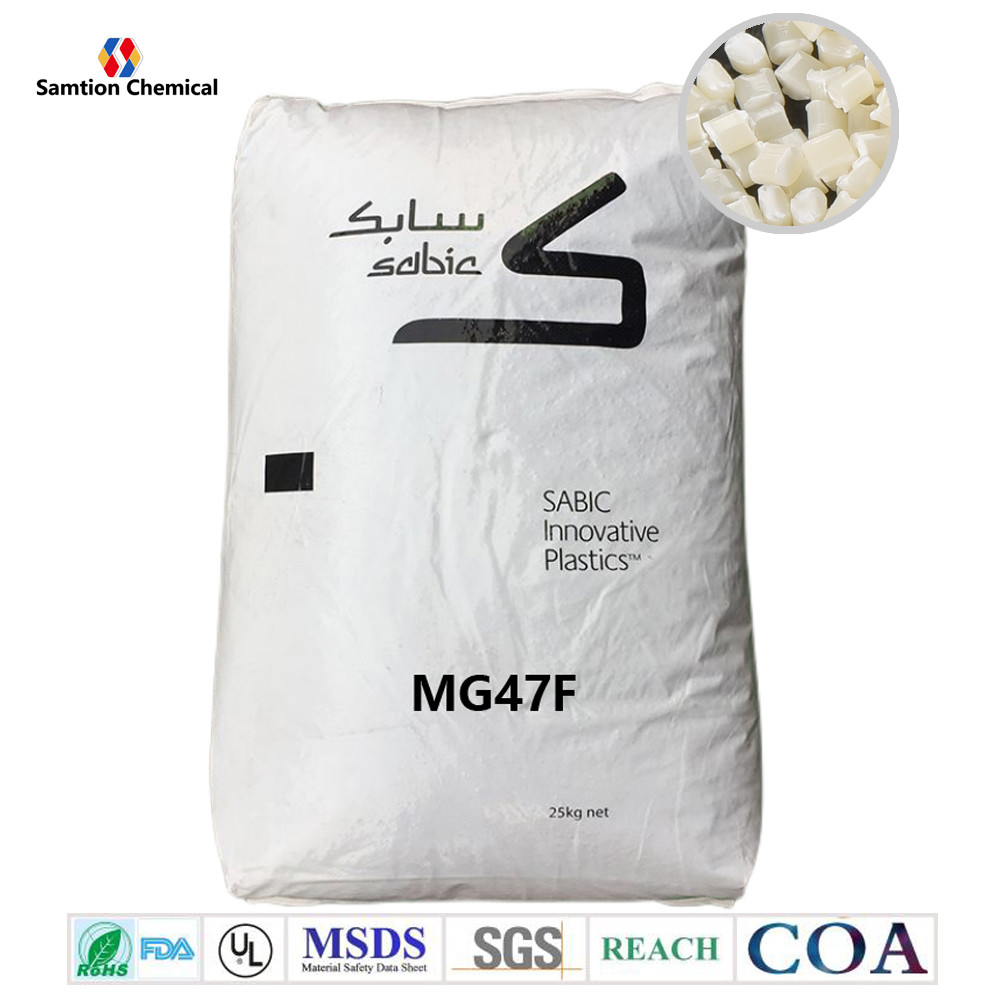

S-Plastics Cycolac MG47F resin is Multi-purpose, injection molding ABS providing a favorable balance of engineering properties. FDA compliant.
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 5 mm/min | 44 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 5 mm/min | 33 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 5 mm/min | 2 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 5 mm/min | 24 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 2270 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 72 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 320 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 30 | J | ASTM D 3763 |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 98 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 3.2 mm, unannealed | 96 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 82 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 8.82E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 8.82E-05 | 1/°C | ASTM E 831 |
Relative Temp Index, Elec | 60 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 60 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 60 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.04 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
Melt Flow Rate, 230°C/3.8 kgf | 5.6 | g/10 min | ASTM D 1238 |
Melt Viscosity, 240°C, 1000 sec-1 | 2250 | poise | ASTM D 3825 |
Melt Flow Rate, 220°C/10.0 kg | 18 | g/10 min | ISO 1133 |
ELECTRICAL | Value | Unit | Standard |
Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 3 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 0 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94HB Flame Class Rating (3) | 1.52 | mm | UL 94 |
Source GMD, last updated:10/30/2001 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 80 - 95 | °C |
Drying Time | 2 - 4 | hrs |
Drying Time (Cumulative) | 8 | hrs |
Maximum Moisture Content | 0.01 | % |
Melt Temperature | 220 - 260 | °C |
Nozzle Temperature | 220 - 260 | °C |
Front - Zone 3 Temperature | 215 - 240 | °C |
Middle - Zone 2 Temperature | 205 - 225 | °C |
Rear - Zone 1 Temperature | 190 - 210 | °C |
Mold Temperature | 50 - 70 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 30 - 60 | rpm |
Shot to Cylinder Size | 50 - 70 | % |
Vent Depth | 0.038 - 0.051 | mm |
Source GMD, last updated:10/30/2001 |
