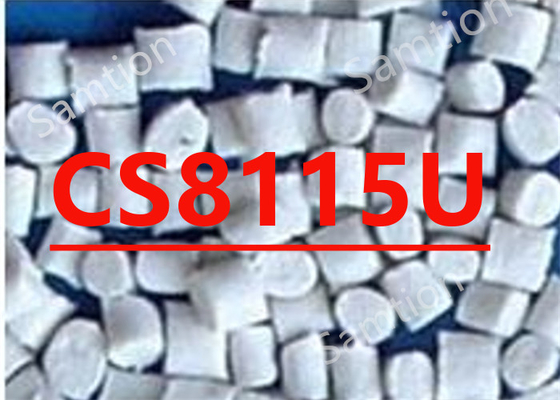

S-Plastics Valox CS8115Uresin is 15% glass filled, UV and colour stable polyester alloy.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 83 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 83 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 4 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 140 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5000 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 157 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.46 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Source GMD, last updated:06/18/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Melt Temperature | 250 - 270 | °C |
| Mold Temperature | 60 - 100 | °C |
| Source GMD, last updated:06/18/1999 | ||
