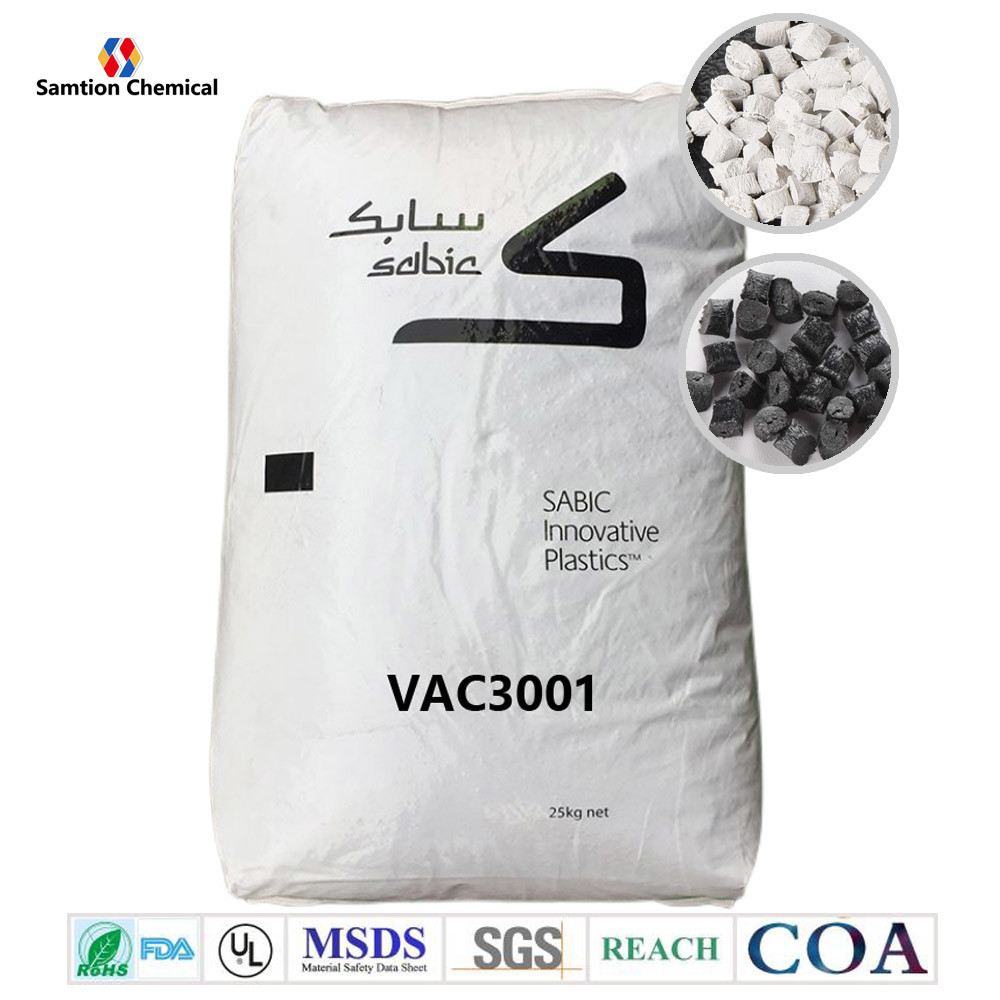

VAC3001 S-Plastic Valox Plastic Resin Unfilled PBT Modified With Elastomer

100KG
MOQ
*USD
Price
VAC3001 S-Plastic Valox Plastic Resin Unfilled PBT Modified With Elastomer
Features Gallery Product Description Request A Quote
Features
Specifications
UL Recognized, 94HB Flame Class Rating (3): 17
Highlight:

Valox Plastic VAC3001

,

Valox Plastic Resin

,

S-Plastic valox VAC3001

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Valox
Certification: COA/ICP Test/Rohs/MSDS
Model Number: VAC3001
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Valox  VAC3001 resin is Unfilled PBT modified with elastomer. Targeted for flexible hinge applications.


Property

MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 48 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 31 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 3.7 % ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 160 % ASTM D 638
Tensile Modulus, 50 mm/min 2500 MPa ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 79 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2300 MPa ASTM D 790
Tensile Stress, yield, 50 mm/min 50 MPa ISO 527
Tensile Stress, break, 50 mm/min 25 MPa ISO 527
Tensile Strain, yield, 50 mm/min 3.5 % ISO 527
Tensile Strain, break, 50 mm/min 120 % ISO 527
Tensile Modulus, 1 mm/min 2300 MPa ISO 527
Flexural Stress, yield, 2 mm/min 75 MPa ISO 178
Flexural Modulus, 2 mm/min 2200 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 53 J/m ASTM D 256
Izod Impact, notched, -30°C 25 J/m ASTM D 256
Instrumented Impact Total Energy, 23°C 54 J ASTM D 3763
Izod Impact, notched 80*10*4 +23°C 5 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 2 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 4 kJ/m² ISO 179/1eA
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 156 °C ASTM D 1525
HDT, 0.45 MPa, 3.2 mm, unannealed 118 °C ASTM D 648
HDT, 1.82 MPa, 3.2mm, unannealed 47 °C ASTM D 648
CTE, -40°C to 40°C, flow 9.18E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, xflow 7.9E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, flow 9.18E-05 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 7.9E-05 1/°C ISO 11359-2
Vicat Softening Temp, Rate B/50 156 °C ISO 306
Vicat Softening Temp, Rate B/120 155 °C ISO 306
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm 48 °C ISO 75/Af
PHYSICAL Value Unit Standard
Specific Gravity 1.31 - ASTM D 792
Mold Shrinkage, flow, 3.2 mm 2.1 - 2.3 % S-Plastics Method
Mold Shrinkage, xflow, 3.2 mm 2.1 - 2.3 % S-Plastics Method
Melt Flow Rate, 250°C/1.2 kgf 17 g/10 min ASTM D 1238
Density 1.3 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.2 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.08 % ISO 62
Melt Volume Rate, MVR at 250°C/1.2 kg 16 cm³/10 min ISO 1133
ELECTRICAL Value Unit Standard
Volume Resistivity 1.E+17 Ohm-cm ASTM D 257
Dielectric Strength, in air, 0.8 mm 15.9 kV/mm ASTM D 149
Relative Permittivity, 1 MHz 2.9 - ASTM D 150
Dissipation Factor, 1 MHz 0.02 - ASTM D 150
Source GMD, last updated:01/05/2000

Processing

Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 3 - 4 hrs
Drying Time (Cumulative) 12 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 250 - 265 °C
Nozzle Temperature 245 - 260 °C
Front - Zone 3 Temperature 250 - 265 °C
Middle - Zone 2 Temperature 245 - 260 °C
Rear - Zone 1 Temperature 240 - 255 °C
Mold Temperature 50 - 75 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 50 - 100 rpm
Shot to Cylinder Size 40 - 80 %
Vent Depth 0.025 - 0.038 mm
Source GMD, last updated:01/05/2000
