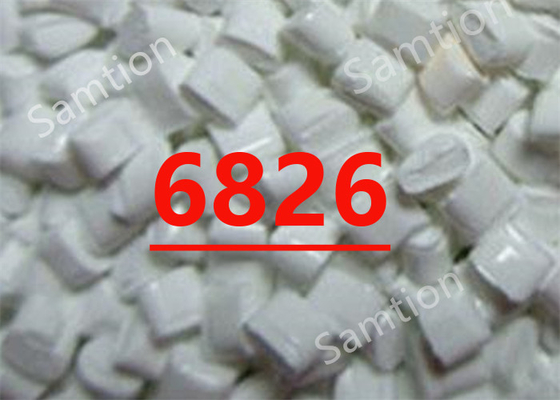

S-Plastics Valox 6826resin is30% glass filled, release containing polyester alloy utility grade.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 117 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 6 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 165 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 8140 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 74 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 201 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.54 | - | ASTM D 792 |
| Source GMD, last updated:06/18/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Melt Temperature | 245 - 265 | °C |
| Mold Temperature | 65 - 90 | °C |
| Source GMD, last updated:06/18/1999 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Valox 6826.pdf |
|
