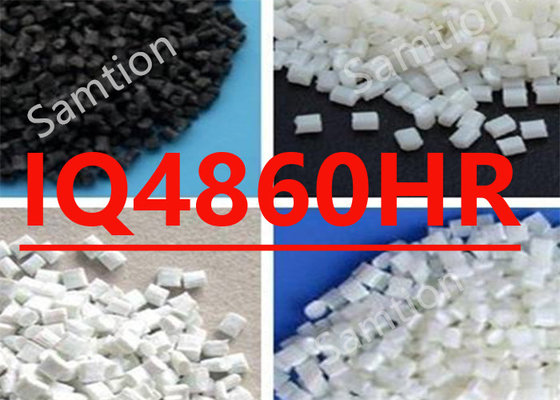

S-Plastics Valox IQ4860HR resin is Environmentally responsible iQ* PBT resin with 30% Glass reinforcement + UL94 V-0. Hydrolytically stable
and impact modified.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 108 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 108 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 10 mm/min | 119 | MPa | S-Plastics - Japan Method |
| Tensile Strain, yld, Type I, 5 mm/min | 1.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 10 mm/min | 8 | % | S-Plastics - Japan Method |
| Tensile Modulus, 5 mm/min | 11100 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 180 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 8970 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 97 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 97 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10700 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 180 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 9180 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 794 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 92 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 75 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 10 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 9 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 21 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 157 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 192 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.03E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.02E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 2.03E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.02E-04 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 157 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 157 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 209 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 187 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.65 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 250°C/5.0 kgf | 40 | g/10 min | ASTM D 1238 |
| Density | 1.65 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.19 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.06 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/5.0 kg | 27 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 250°C/5.0 kg | 27 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
| Dielectric Strength, in oil, 3.2 mm | 20 | kV/mm | IEC 60243-1 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.8 | mm | UL 94 by GE |
| UL Compliant, 94-5VA Rating (3)(4) | 2 | mm | UL 94 by GE |
| Source GMD, last updated:11/01/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 230 - 260 | °C |
| Nozzle Temperature | 240 - 260 | °C |
| Front - Zone 3 Temperature | 240 - 260 | °C |
| Middle - Zone 2 Temperature | 230 - 250 | °C |
| Rear - Zone 1 Temperature | 220 - 240 | °C |
| Mold Temperature | 60 - 120 | °C |
| Back Pressure | 5 - 10 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 70 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:11/01/2007 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Valox IQ4860HR.pdf |
|
