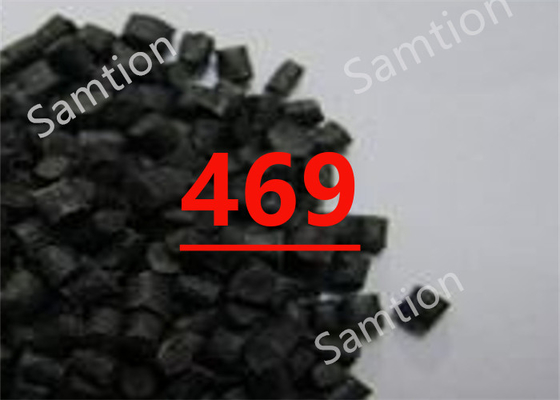

S-Plastics Valox 469 resin is30% glass filled, flame retardant, utility grade polyester available in black only.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 117 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 96 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 3 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 175 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 6890 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 53 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 187 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 187 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 120 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 120 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 120 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.65 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.5E+16 | Ohm-cm | ASTM D 257 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-2 Flame Class Rating (3) | 0.7 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.5 | mm | UL 94 |
| Source GMD, last updated:06/18/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Melt Temperature | 245 - 260 | °C |
| Mold Temperature | 70 - 90 | °C |
| Source GMD, last updated:06/18/1999 | ||
For more information please download the datasheet | |
