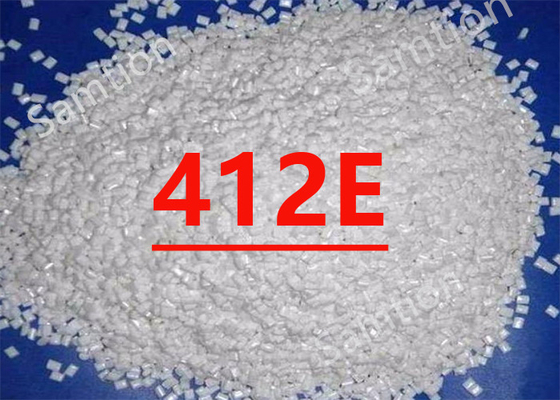

S-Plastics Valox 412Eresin is 20% GR, increased mechanical performance vs unreinforced PBT. Non-flame retardant. For spotlights, appliance housings and handles.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 99 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 155 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 5170 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 119 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 694 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 69 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 211 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 201 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 3.42E-05 | 1/°C | ASTM E 831 |
| CTE, 60°C to 138°C, flow | 3.42E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.45 | - | ASTM D 792 |
| Specific Volume | 0.68 | cm³/g | ASTM D 792 |
| Water Absorption, 24 hours | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow, 1.5-3.2 mm | 0.4 - 0.6 | % | S-Plastics Method |
| Mold Shrinkage, flow, 3.2-4.6 mm | 0.6 - 0.8 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 1.5-3.2 mm | 0.5 - 0.8 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2-4.6 mm | 0.8 - 1.1 | % | S-Plastics Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.7E+16 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 18.3 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 22.4 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.5 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.5 | - | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.001 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.02 | - | ASTM D 150 |
| Source GMD, last updated:12/29/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 265 | °C |
| Nozzle Temperature | 245 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 265 | °C |
| Middle - Zone 2 Temperature | 245 - 260 | °C |
| Rear - Zone 1 Temperature | 240 - 255 | °C |
| Mold Temperature | 65 - 90 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 50 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.025 - 0.038 | mm |
| Source GMD, last updated:12/29/1999 | ||
|
