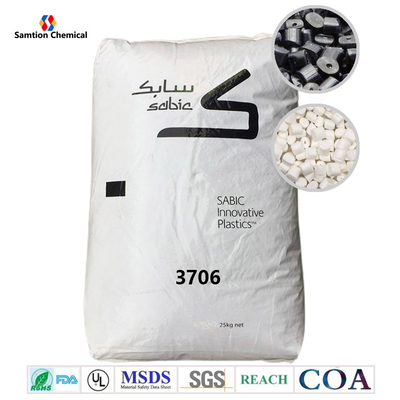

S-Plastics Valox 3706resin is Impact modified PBT+PC resin. Outdoor enclosure. Not available in all colors.
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 48 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 39 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 50 | % | ASTM D 638 |
Tensile Modulus, 50 mm/min | 1960 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 78 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 1990 | MPa | ASTM D 790 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 667 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 49 | J | ASTM D 3763 |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 135 | °C | ASTM D 1525 |
HDT, 0.45 MPa, 3.2 mm, unannealed | 126 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 85 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 7.92E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 8.64E-05 | 1/°C | ASTM E 831 |
Relative Temp Index, Elec | 100 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 85 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 100 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.3 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 1.2 - 1.4 | % | S-Plastics Method |
Mold Shrinkage, xflow, 3.2 mm | 1.2 - 1.4 | % | S-Plastics Method |
Melt Flow Rate, 260°C/5.0 kgf | 23 | g/10 min | ASTM D 1238 |
Melt Flow Rate, 266°C/5.0 kgf | 23 | g/10 min | ASTM D 1238 |
ELECTRICAL | Value | Unit | Standard |
Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 2 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
UL Recognized, 94-5VA Rating (3) | 2.48 | mm | UL 94 |
Source GMD, last updated:11/12/1999 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 120 | °C |
Drying Time | 3 - 4 | hrs |
Drying Time (Cumulative) | 12 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 250 - 265 | °C |
Nozzle Temperature | 245 - 260 | °C |
Front - Zone 3 Temperature | 250 - 265 | °C |
Middle - Zone 2 Temperature | 245 - 260 | °C |
Rear - Zone 1 Temperature | 240 - 255 | °C |
Mold Temperature | 65 - 90 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 50 - 80 | rpm |
Shot to Cylinder Size | 40 - 80 | % |
Vent Depth | 0.025 - 0.038 | mm |
Source GMD, last updated:11/12/1999 |
