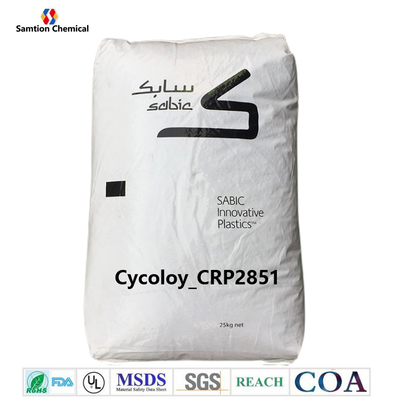

S-Plastics Lubricomp Cycoloy_CRP2851 resin is 5% PTFE reinforced PC+ABS wear resistant, flame retardant resin for moving components in business equipment. 50% recycle content.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 48 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 30 | % | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 99 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2960 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2136 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 96 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 90 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 79 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.22 | - | ASTM D 792 |
| Melt Flow Rate, 260°C/5.0 kgf | 13 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:05/23/2003 | |||
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 75 - 80 | °C | |
| Drying Time | 3 - 4 | hrs | |
| Drying Time (Cumulative) | 8 | hrs | |
| Maximum Moisture Content | 0.04 | % | |
| Melt Temperature | 230 - 275 | °C | |
| Nozzle Temperature | 230 - 275 | °C | |
| Front - Zone 3 Temperature | 225 - 275 | °C | |
| Middle - Zone 2 Temperature | 215 - 260 | °C | |
| Rear - Zone 1 Temperature | 210 - 255 | °C | |
| Mold Temperature | 50 - 70 | °C | |
| Back Pressure | 0.3 - 0.7 | MPa | |
| Screw Speed | 40 - 70 | rpm | |
| Shot to Cylinder Size | 30 - 80 | % | |
| Vent Depth | 0.038 - 0.076 | mm | |
| Source GMD, last updated:05/23/2003 | |||
