S-Plastics NORYL N300X resin is a non-reinforced blend of polyphenylene ether (PPE) + high impact polystyrene (HIPS). This injection moldable grade contains nonbrominated,non-chlorinated flame retardant and carries a UL94 flame rating of 5VA at 2mm and V0 at 1.5mm.
NORYL N300X resin offers strong electrical performance, low moisture absorption, dimensional stability, and hydrolytical stability. This material is an excellent candidate for indoor and outdoor electrical enclosure and solar / photovoltaic junction box applications

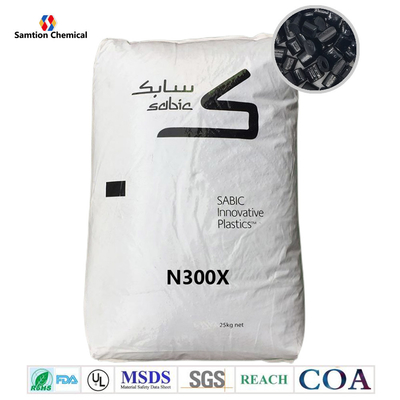

Noryl* Resin N300X
Property | |||
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 74 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 73 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 5.3 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 7.6 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 2380 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 110 | MPa | ASTM D 790 |
Flexural Stress, yld, 2.6 mm/min, 100 mm span | 110 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 2650 | MPa | ASTM D 790 |
Flexural Modulus, 2.6 mm/min, 100 mm span | 2500 | MPa | ASTM D 790 |
Hardness, Rockwell R | 119 | - | ASTM D 785 |
Tensile Stress, yield | 75 | MPa | ISO 527 |
Tensile Stress, break | 66 | MPa | ISO 527 |
Tensile Strain, yield | 5.2 | % | ISO 527 |
Tensile Strain, break | 13 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2220 | MPa | ISO 527 |
Flexural Stress | 112 | MPa | ISO 178 |
Flexural Modulus | 2520 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 190 | J/m | ASTM D 256 |
Izod Impact, notched, -30°C | 55 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 54 | J | ASTM D 3763 |
Izod Impact, notched 80*10*4 +23°C | 15 | kJ/m² | ISO 180/1A |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 155 | °C | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, unannealed | 140 | °C | ASTM D 648 |
HDT, 1.82 MPa, 6.4 mm, unannealed | 145 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 8.E-05 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 8.E-05 | 1/°C | ASTM E 831 |
Vicat Softening Temp, Rate B/50 | 162 | °C | ISO 306 |
Vicat Softening Temp, Rate B/120 | 164 | °C | ISO 306 |
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 156 | °C | ISO 75/Be |
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 140 | °C | ISO 75/Ae |
Relative Temp Index, Elec | 105 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 105 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.1 | - | ASTM D 792 |
Water Absorption, equilibrium, 23C | 0.06 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
Mold Shrinkage on Tensile Bar, xflow (2) | 0.5 - 0.7 | % | S-Plastics Method |
Melt Flow Rate, 280°C/5.0 kgf | 7.4 | g/10 min | ASTM D 1238 |
Melt Volume Rate, MVR at 280°C/5.0 kg | 7 | cm³/10 min | ISO 1133 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 1.E+17 | Ohm-cm | ASTM D 257 |
Surface Resistivity | 1.E+17 | Ohm | ASTM D 257 |
Dielectric Strength, in oil, 3.2 mm | 19.4 | kV/mm | ASTM D 149 |
Relative Permittivity, 50/60 Hz | 2.68 | - | ASTM D 150 |
Relative Permittivity, 1 MHz | 2.63 | - | ASTM D 150 |
Dissipation Factor, 50/60 Hz | 0.0031 | - | ASTM D 150 |
Dissipation Factor, 1 MHz | 0.009 | - | ASTM D 150 |
Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
Hot Wire Ignition {PLC) | 0 | PLC Code | UL 746A |
High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-0 Flame Class Rating (3) | 1.47 | mm | UL 94 |
Source GMD, last updated:02/01/2005 |
Noryl* Resin N300X
Processing | ||
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 110 - 120 | °C |
Drying Time | 3 - 4 | hrs |
Drying Time (Cumulative) | 8 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 300 - 325 | °C |
Nozzle Temperature | 300 - 325 | °C |
Front - Zone 3 Temperature | 290 - 325 | °C |
Middle - Zone 2 Temperature | 275 - 320 | °C |
Rear - Zone 1 Temperature | 265 - 315 | °C |
Mold Temperature | 80 - 110 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 20 - 100 | rpm |
Shot to Cylinder Size | 30 - 70 | % |
Polyphenylene oxide (PPO) is one of the world's general engineering plastics. With high heat resistance, good electrical properties, excellent hydrolytic stability and the ability to use non-halogen FR packages.
S-Plastics Noryl PPO is an amorphous engineering plastics which made by modifying PPO with polystyrene etc. It has the advantages of high rigidity, high heat resistance, flame resistance and excellent electrical properties. In addition, PPO also has the advantages of non-toxicity and pollution resistance. The biggest feature is that it has excellent dimensional stability and outstanding electrical insulation under long-term load, and has a wide temperature range(It can be used for a long time in the range of -127~121℃.). The dielectric constant and dielectric loss of PPO is one of the smallest varieties of engineering plastics, and it is hardly affected by temperature and humidity. It can be used in the field of low, medium and high frequency electric fields. It has excellent water resistance and steam resistance, and the products have higher tensile strength and impact strength, and good creep resistance.
The advantages of the product are summarized as follows
S-Plastics Noryl PPO can be used in a wide range of fields such as :
Drinking water / food grade:731,731S,GFN10F,GFN20F,GFN30F,GFN1520V,GFN1630V(Color requirements)
Unreinforce and flame retardant: 0150B,N190X,PX9406P,SE100X
Reinforce and flame retardant: SE1GFN1,SE1GFN2,SE1GFN3,HS2000X
For more information please see below |
|
S-Plastics PPO N300X.pdf |
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials Click to consult and get the latest quotation within 24 hours! |
S-Plastics Noryl Resin Application
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
